Vess R3600
Unified storage appliance consolidates both block and file protocols onto a single hardware platform
Updated on Thursday, May 27, 2021
The industry-leading combination of PROMISE Vess R3600 for Milestone innovative video technology accelerates faster decision making by giving partners and clients the ability to rapidly deployment and achieve faster time-to-value across solutions, while significantly reducing TCO.
What is needed
From PROMISE Technology, Inc.
-
Vess R3600
Vess R3600 for Milestone System Builder Program
From Milestone Systems
-
Milestone XProtect
XProtect Corporate 2020 R3
Overview
How it works
How to install
Overview

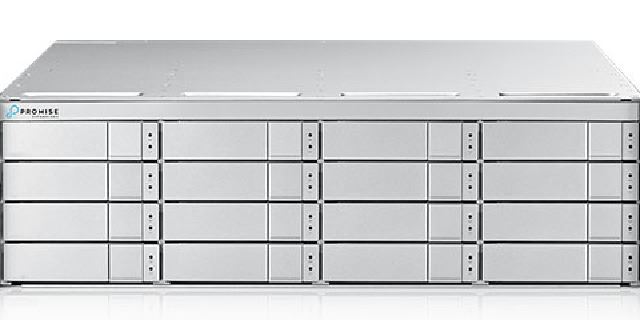

Vess R3600 - Unified storage appliance consolidates both block and file protocols onto a single hardware platform
The Vess R3000 Series supports up to 208 hard drives with online expansion capability. Over-allocating of storage leveraging Thin-Provisioning feature helps take the worry out of planning and testing when additional capacity is required in the future. The included Read/Write Flash Cache Acceleration feature provides additional performance boost while lowering the latency. PROMISE intelligent data caching automatically promotes hot data to cache in real time, so you get the full benefit of flash performance.The Vess R3000’s new CacheGuard Data Protection features, Advanced Battery Flash Backup, go that extra mile to ensure your data is safe in case of power loss. Delivering protection of RAID controller write cache content beyond the standard 72-hour window, you can rest assured knowing your data is protected even when disaster strikes. Predictive Data Migration (PDM) proactive and predictive analytics keep your data safe with self healing technology.
Key features
- Dynamic storage solution optimized for virtualized environments
- Unified iSCSI connections for SAN and/or NAS in the same storage
- Support for on demand expansion, ideal for today’s growing data centers
- Advanced Storage Services included at no extra cost
- Designed to meet the growing challenge of unstructured data
How it works
1 of 6
How to configure RAID on Vess A-Series Appliance for Milestone XProtect VMS (Video)
2 of 6
Step 1
Please make sure configure as below:
1. RAID5+ Spare/RAID10
2. Stripe Size:1MB
3. Allocation Unit Size:64K
3 of 6

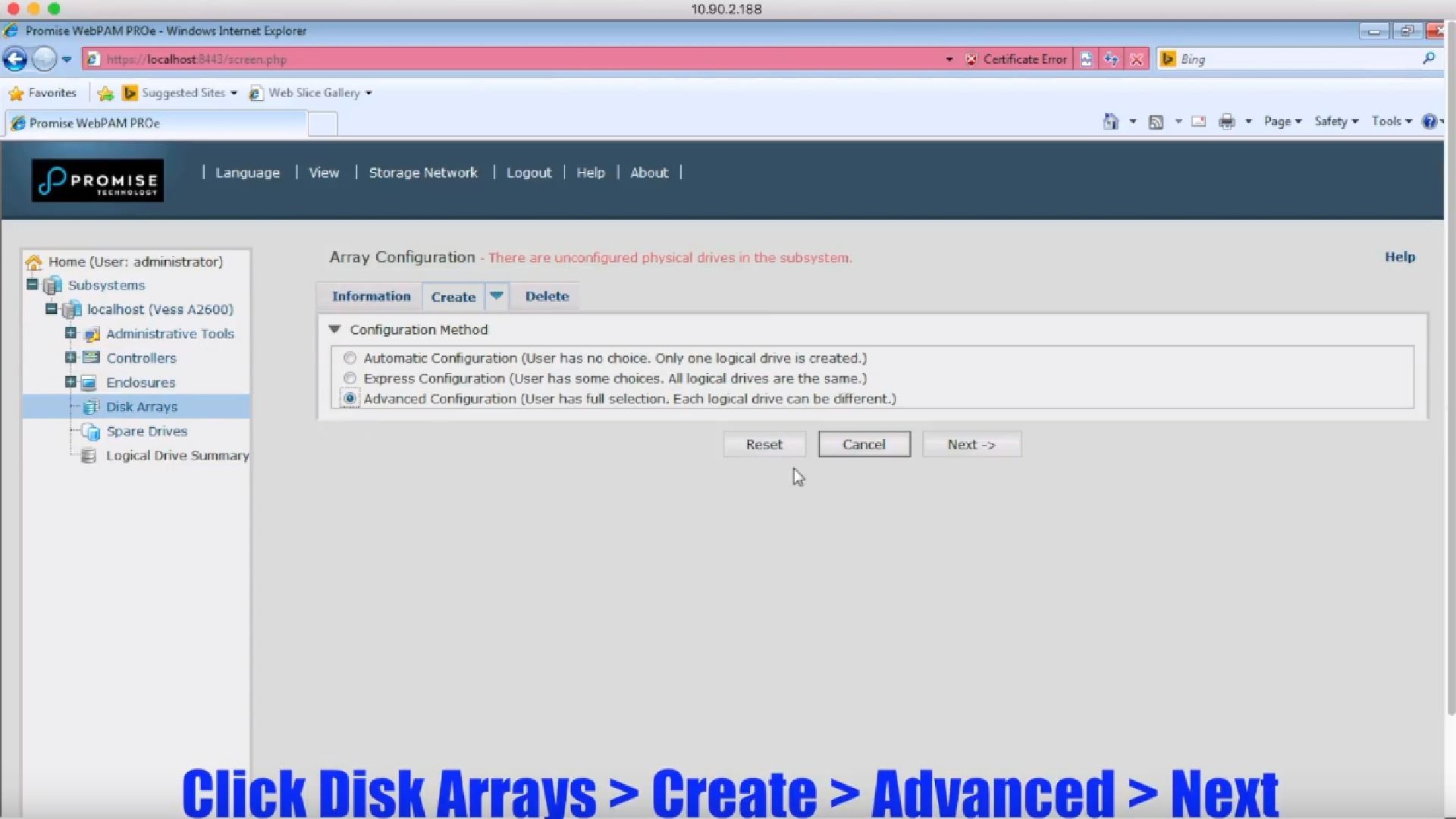

Step 2:
Array Configuration:
Click Disk Arrays> Create> Advanced
4 of 6

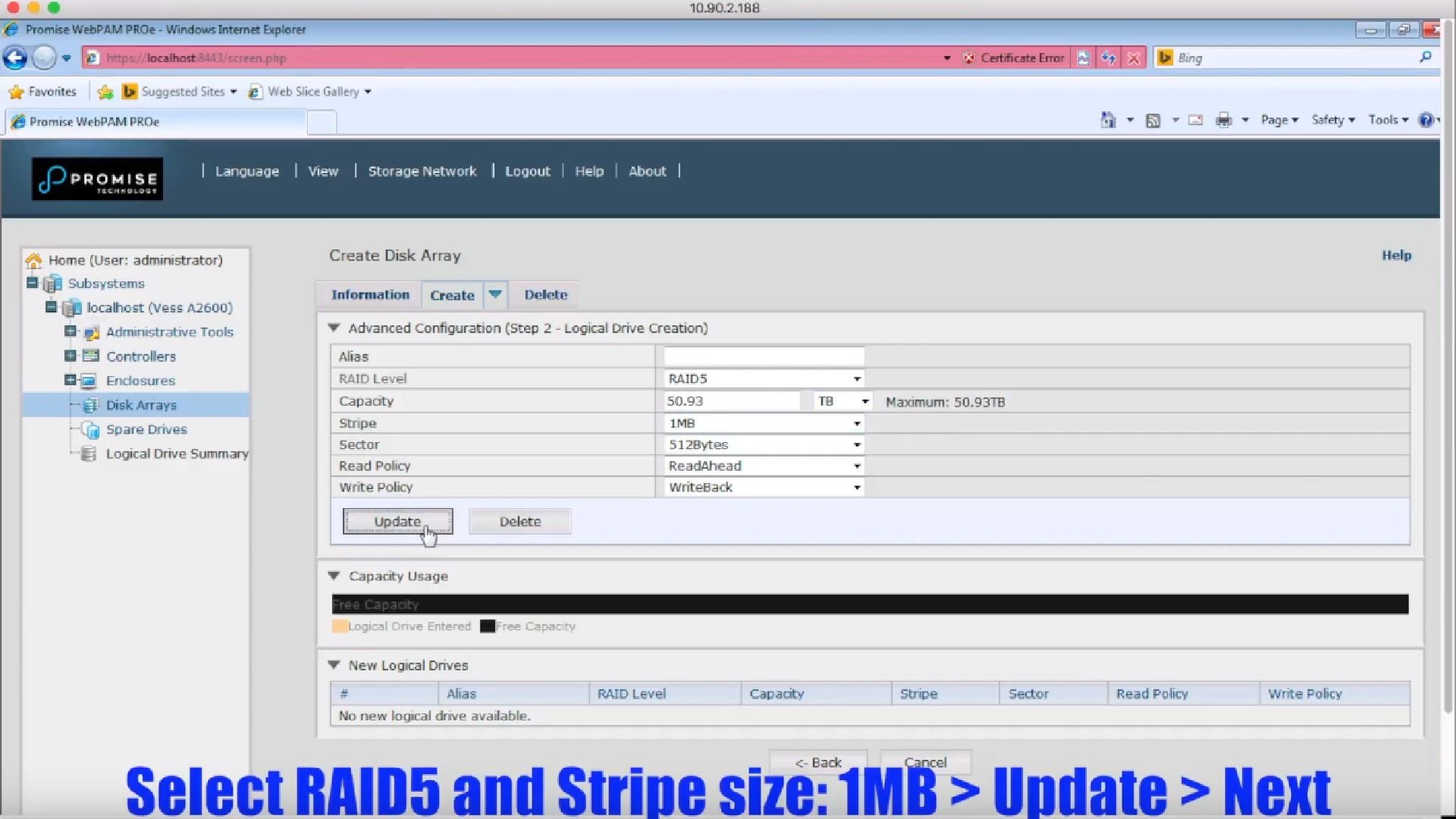

Step 3:
Create Disk Array:
Select RAID5 and Stripe size:1MB> Updated
5 of 6

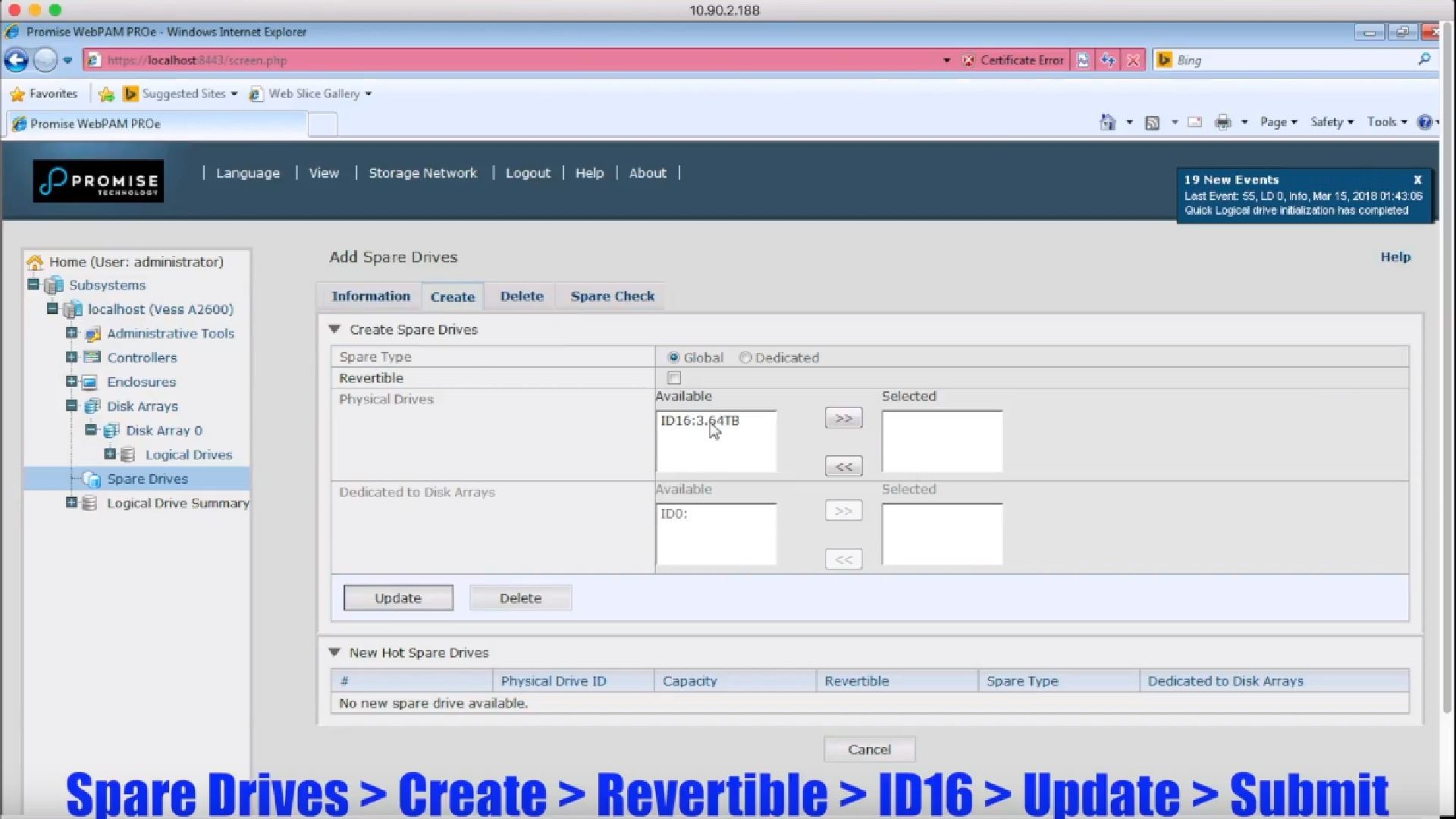

Step 4:
Spare Drives:
Create > Revertible>ID16> Update
6 of 6

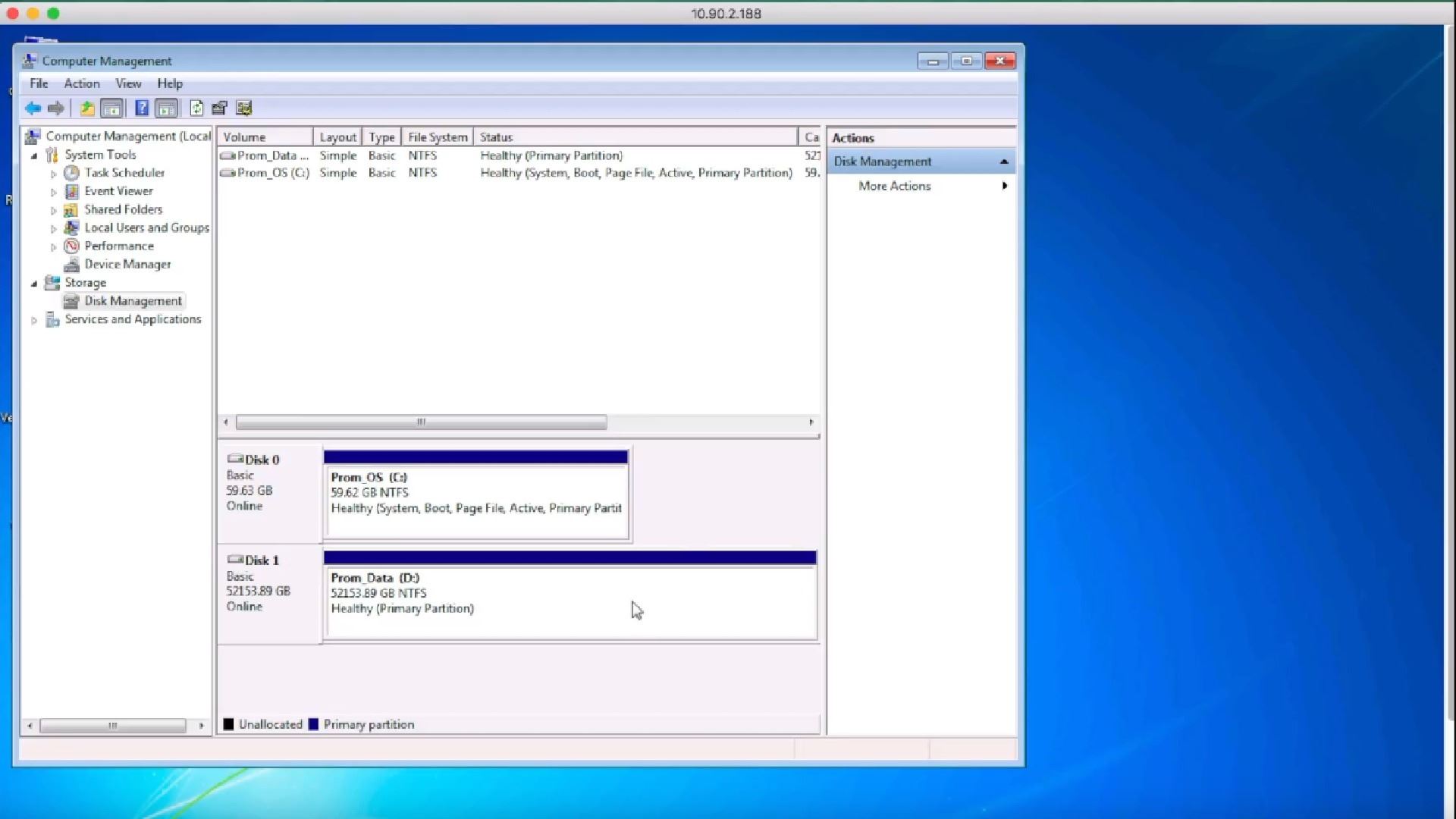

Step 5:
Computer Management:
1.Select GPT
2.New Simple Volume
3.Change Allocation unit size to 64K
Download trial
Surveillance Planner
Download
free
Where it is used?
-
Video Surveillance Deployment for VOS LogisticsPromise Technology Video Surveillance Deployment for VOS Logistics - Installed by Stanley Security
How to install
Documentation
This is where you can find additional documentation
| Vess R3000 Series Quick Start Guide | pdf Download (3.22 MB) |
| Vess R3000 Series & J3000 Series Product Manual | pdf Download (20.74 MB) |
Milestone Verified
Read verification
Specification
Required PROMISE Technology, Inc. product(s)
- Surveillance Planner
- VMWare compatible
Has proven compatibility with the following Milestone versions:
-
XProtectExpress2019 R1, 02/05 2019
-
XProtectProfessional2019 R1, 02/05 2019
-
XProtectExpress+2020 R1, 02/11 2020
-
XProtectCorporate2020 R3, 11/12 2020
-
XProtectEssential+2020 R3, 11/12 2020
-
XProtectProfessional+2020 R3, 11/12 2020
Is also expected to work with:
-
XProtectExpress2019 R1, 02/05 2019 and later
-
XProtectProfessional2019 R1, 02/05 2019 and later
-
XProtectExpress+2020 R1, 02/11 2020 and later
-
XProtectCorporate2020 R3, 11/12 2020 and later
-
XProtectEssential+2020 R3, 11/12 2020 and later
-
XProtectProfessional+2020 R3, 11/12 2020 and later
