Thermal Radar 360-Degree Perimeter Protection
Thermal Radar automatically detects intruders using a continuously rotating thermal sensor.
Updated on Monday, April 4, 2022
Thermal Radar (TR) is an automated security solution that detects perimeter intruders. TR continuously rotates a thermal sensor and sends slew-to-cue commands to an attached PTZ camera when targets are detected. TR continues to track the target(s) and displays video and alerts in XProtect.
What is needed
From Thermal Imaging Radar
-
Thermal Radar
-
PTZ Camera
-
I/O Module
Thermal Radar: TR3200, TR3300, TR6200, TR6400, TR6600
PTZ Camera: Leading Brand PTZ Camera
I/O Module: For controlling Security lights, Sirens, Strobe Lights
PTZ Camera: Leading Brand PTZ Camera
I/O Module: For controlling Security lights, Sirens, Strobe Lights
From Milestone Systems
-
Milestone XProtect
XProtect Corporate 2016 or higher
XProtect Expert 2016 or higher
XProtect Professional+ 2016 or higher
XProtect Express+ 2016 or higher
XProtect Essential+ 2016 or higher
XProtect Expert 2016 or higher
XProtect Professional+ 2016 or higher
XProtect Express+ 2016 or higher
XProtect Essential+ 2016 or higher
Overview
How it works
How to install
Overview
Thermal Radar 360-Degree Perimeter Protection - Thermal Radar automatically detects intruders using a continuously rotating thermal sensor.
Thermal Radar is a network-based thermal surveillance solution that provides constant 360-degree situational awareness. By rapidly rotating a FLIR Boson thermal sensor and running edge analytics, Thermal Radar can scan hundreds of acres every two seconds for unwanted intruders - both vehicles and people.Thermal Radar's patent-pending graphical user interface (GUI) integrates with Milestone's XProtect to display the full 360-degree thermal detection area, an integrated geospatial map of detected target locations, and event alerts.
Key features
- Continuous detection of perimeter intruders and automatic slew-to-cue communication with attached PTZ cameras.
- Intuitive, patent-pending, web-based graphical user interface (GUI) with myriad customization options for programming Thermal Radar.
- Ability to move other PTZ cameras on target using Thermal Radar's detection alerts and XProtect's logic rules.
- Several sizes of thermal sensors to meet customer-determined perimeter distance objectives.
- Ability to control other security hardware (e.g., speakers, lights) using Thermal Radar detection alerts, which can be activated by zone or type.
How it works
1 of 8

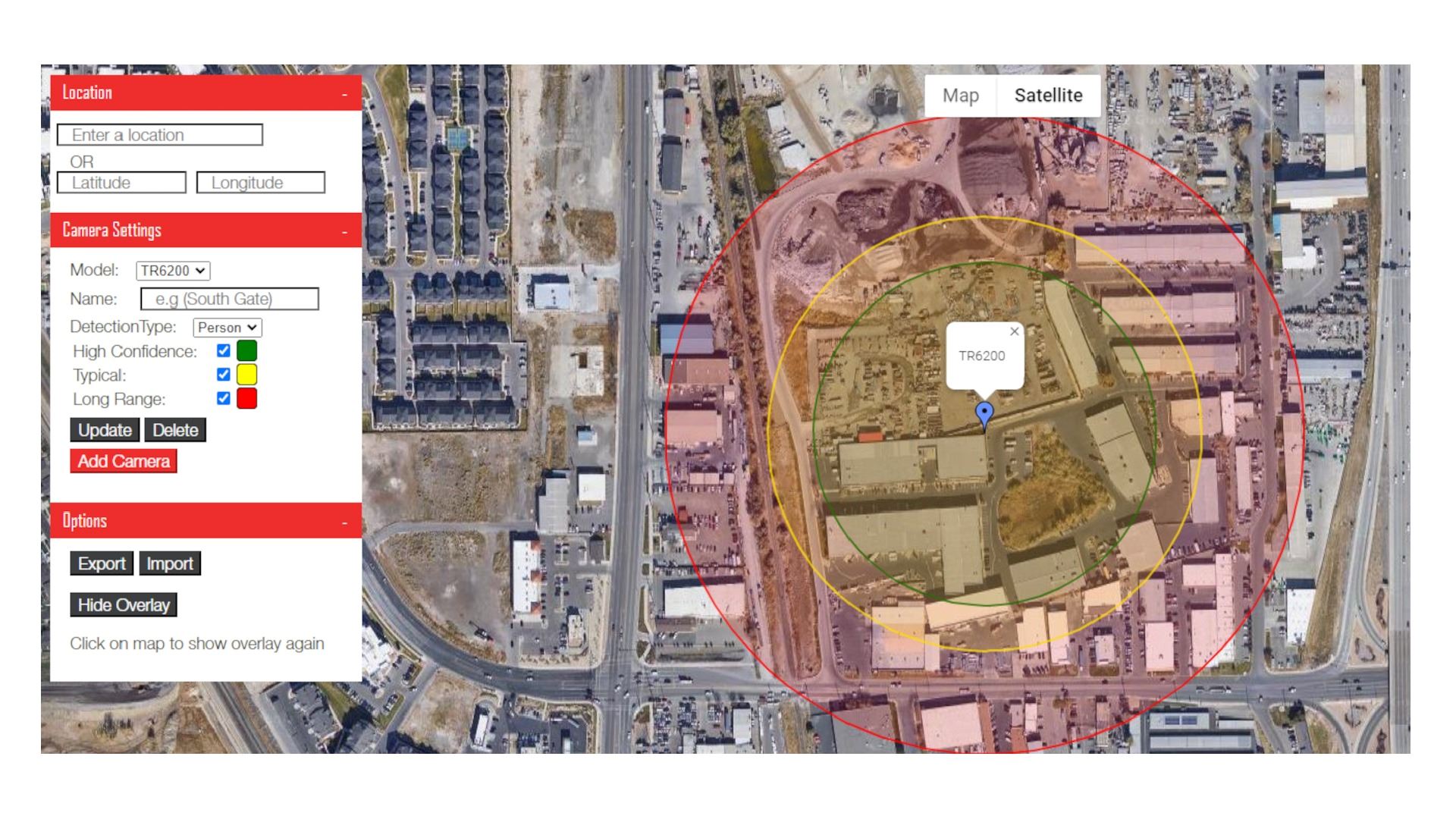

Use Thermal Radar's layout tool (https://www.thermalradar.com/layout-tool) to evaluate Thermal Radar distance capabilities by placing camera coverage layouts at user-defined locations.
2 of 8

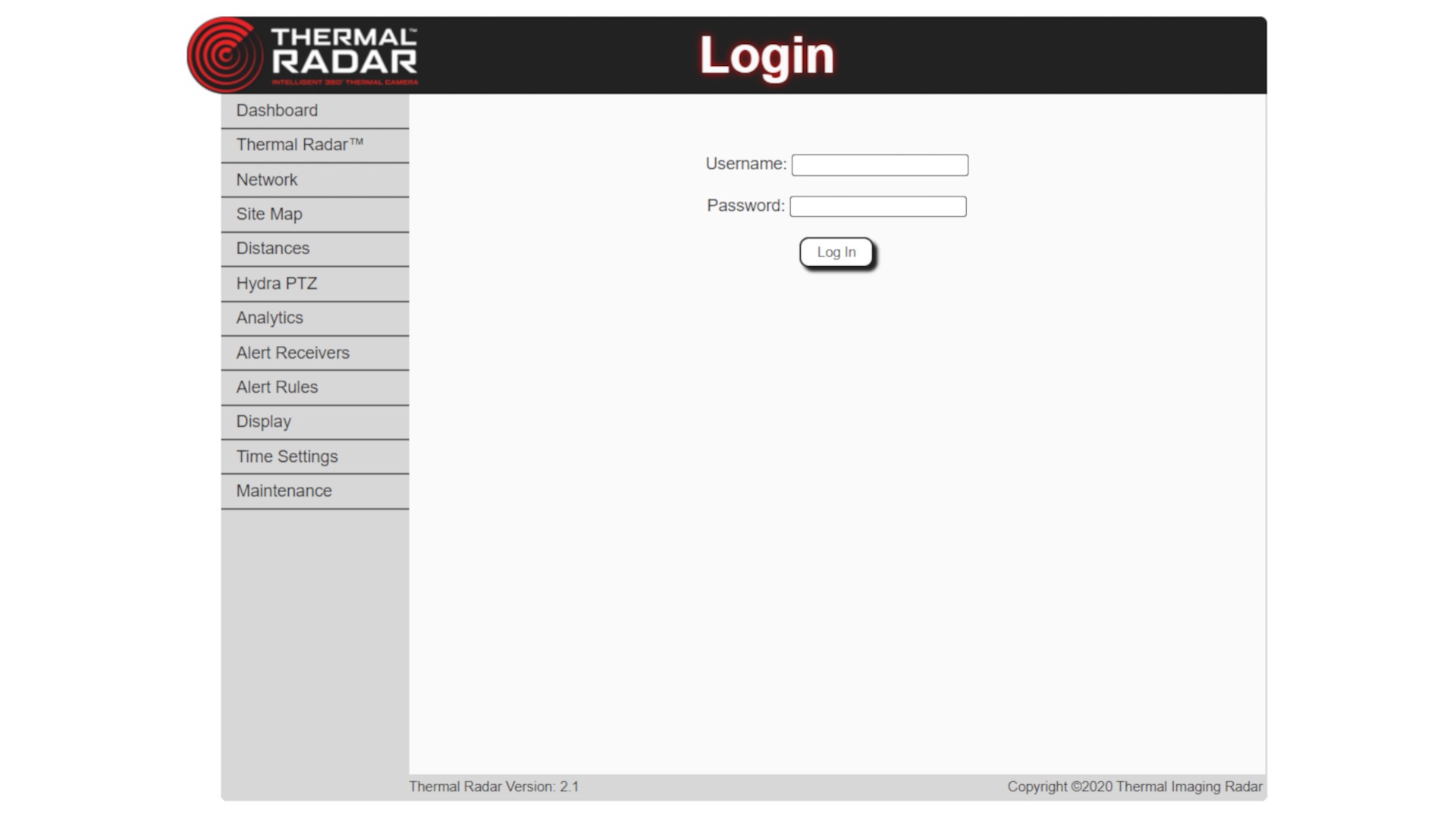

Post installation of Thermal Radar, configuration is accomplished via the intuitive graphical user interface (GUI).
3 of 8

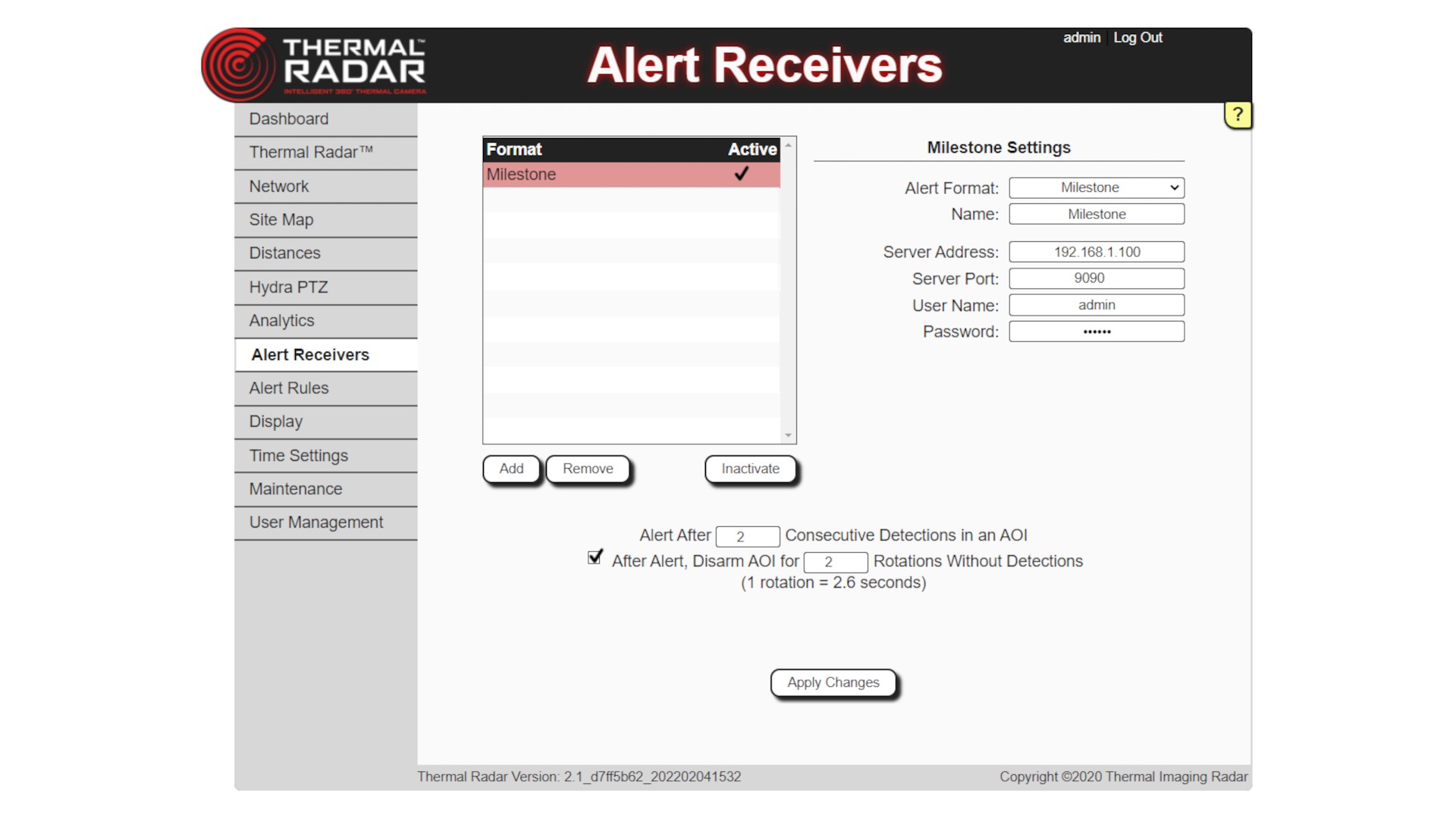

Thermal Radar installs as a normal camera/device into Milestone. To provision Thermal Radar alarms in XProtect, a "Milestone Receiver" is created within the Thermal Radar GUI.
4 of 8

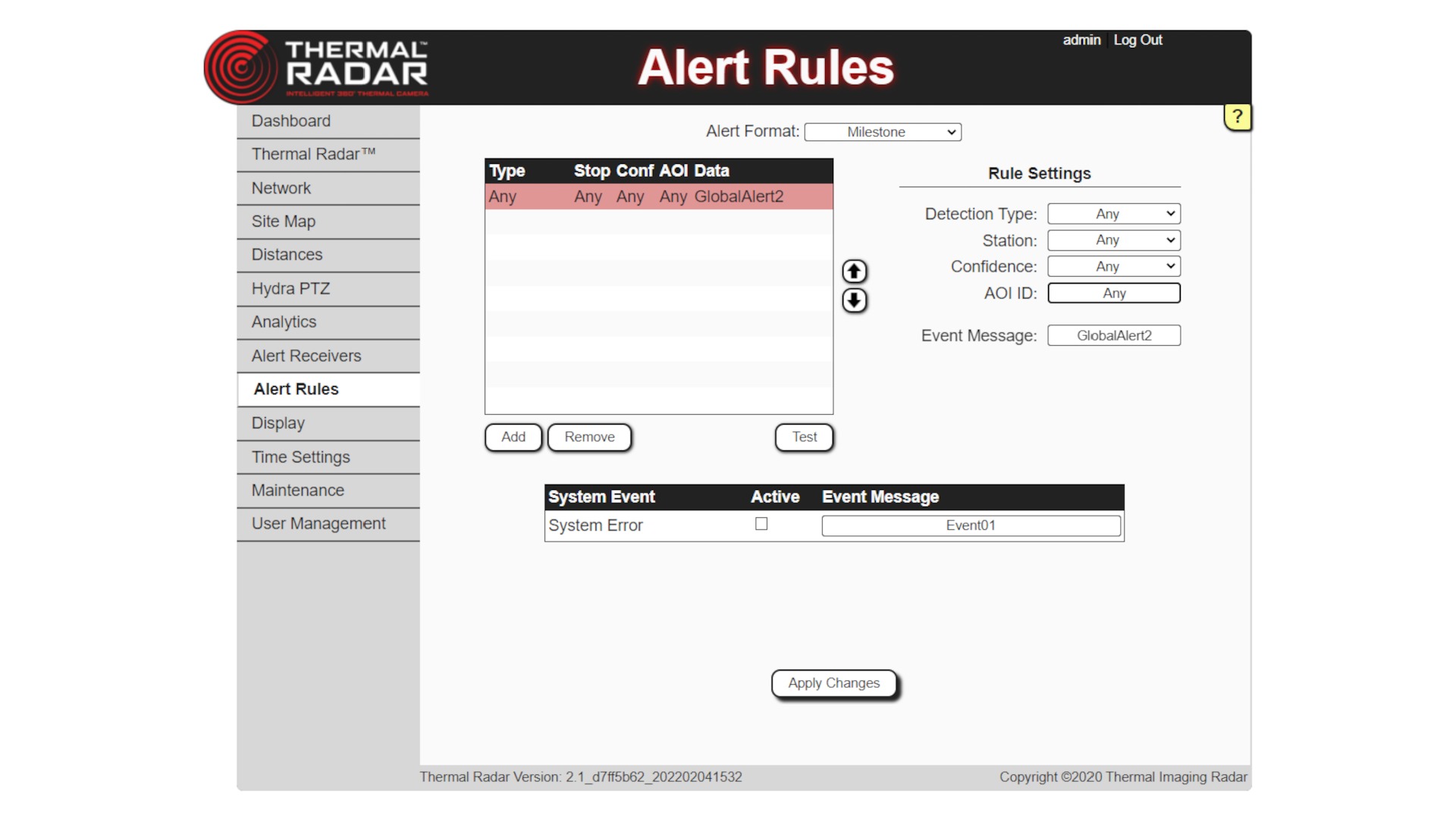

Once a Milestone Alert Receiver is created, user-defined Alert Rules can be added. There are many options, such as alerting only on people in one area, vehicles in another, or both in all areas.
5 of 8

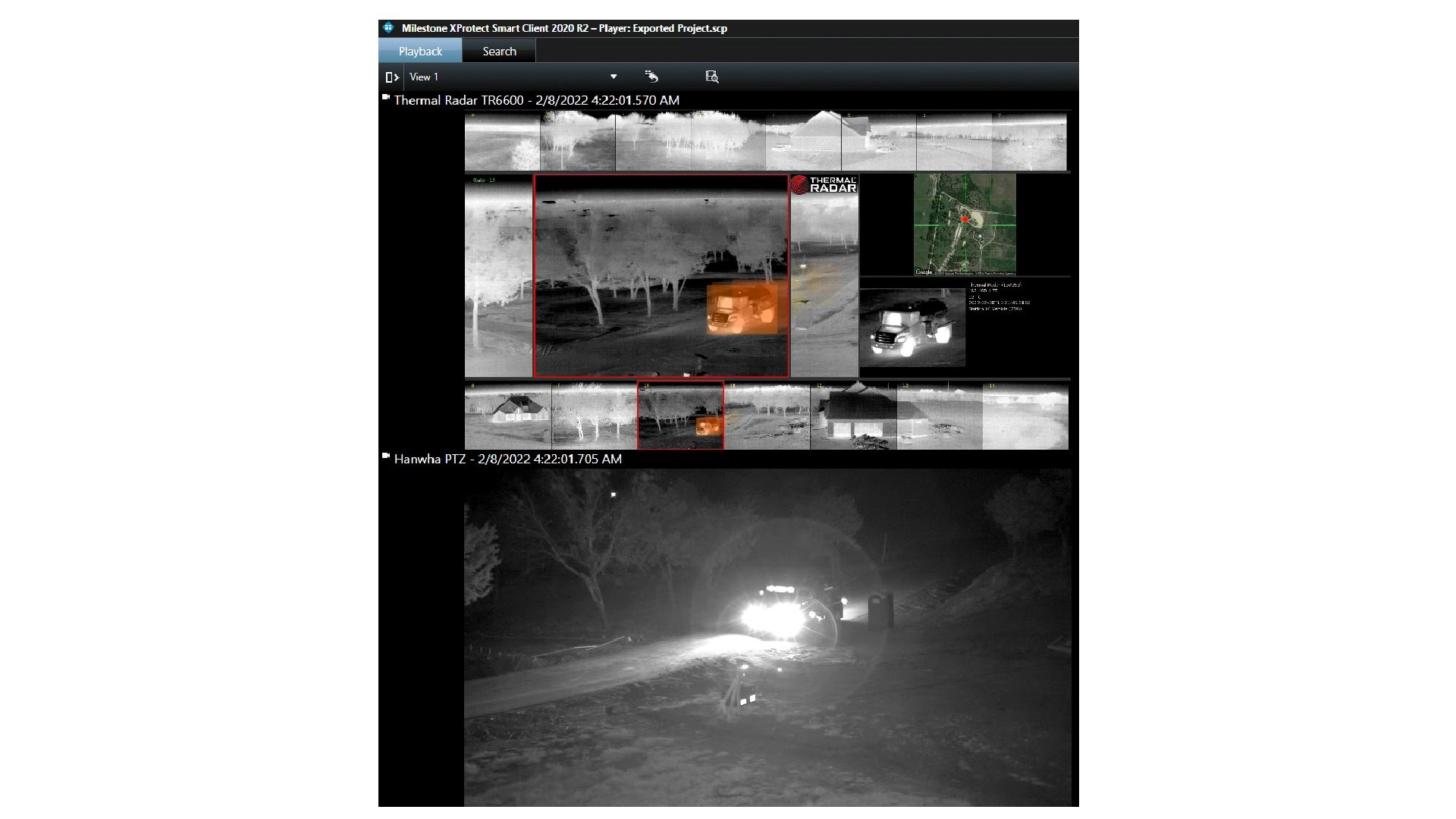

This image depicts the thermal detection of a truck by Thermal Radar and the resulting optical image of the same vehicle after a slew-to-cue command was sent to the PTZ by Thermal Radar.
6 of 8

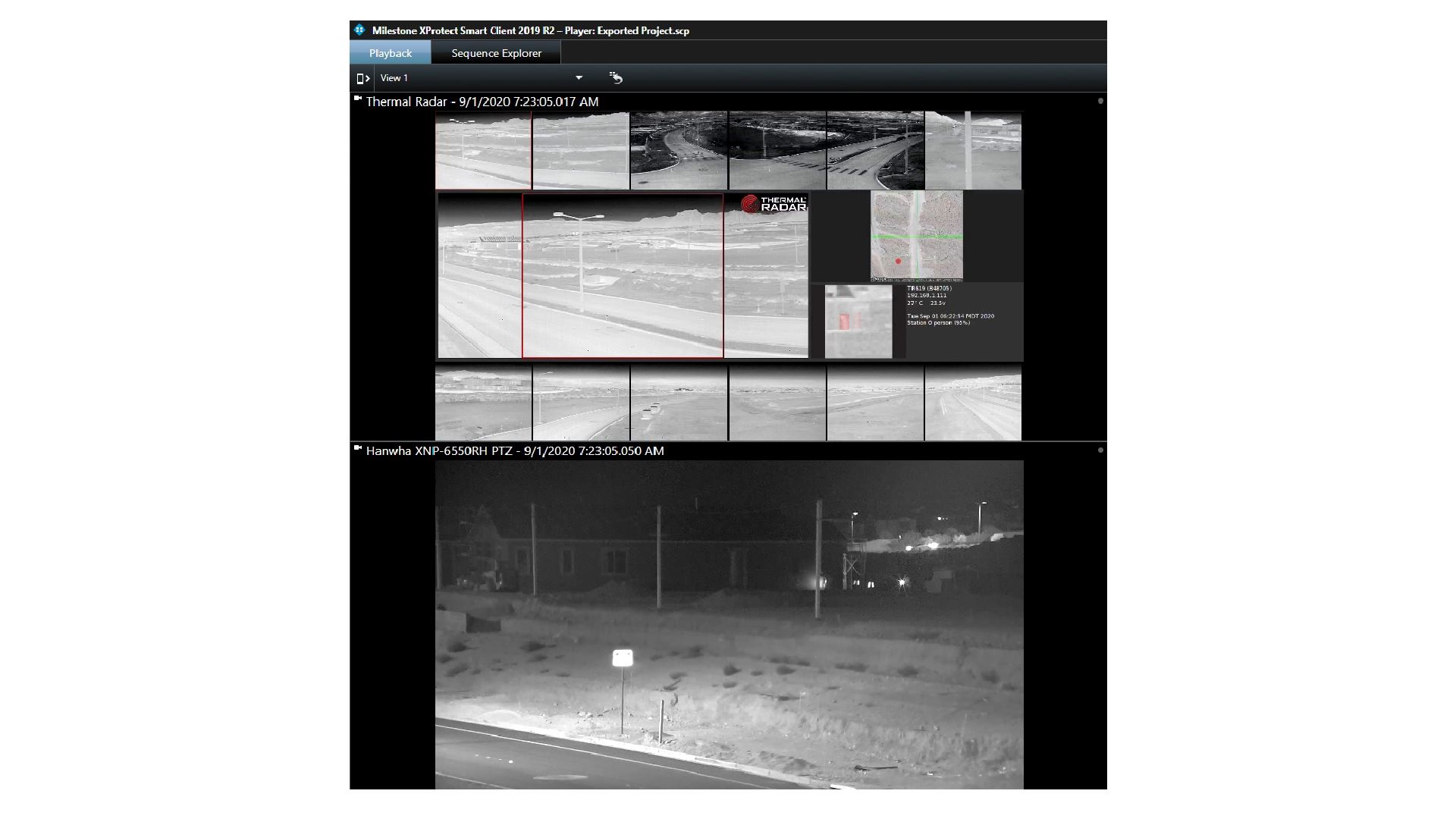

This image depicts thermal detection of two possible intruders at a construction site, approximately 200 yards away, and the resulting optical image of the individuals due to Thermal Radar.
7 of 8
This video shows live thermal detections with optical views of the detected targets (based on slew-to-cue commands), as well as a historical list of prior alarms, with a view window for viewing them.
8 of 8

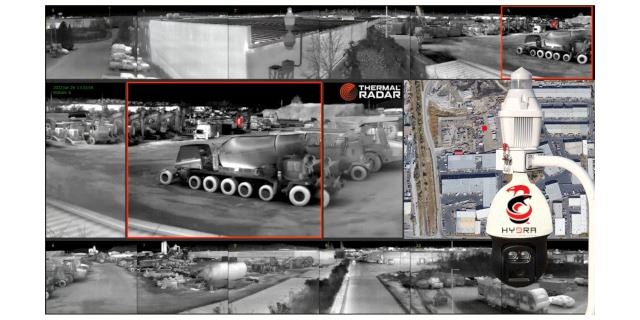

This image depicts the thermal detection of a truck by Thermal Radar and the resulting optical image of the same vehicle after a slew-to-cue command was sent to the PTZ by Thermal Radar.
How to install
Documentation
This is where you can find additional documentation
| Thermal Radar Milestone VMS Integration Guide | pdf Download (1.18 MB) |
| Thermal Radar Installation & Settings Guide | pdf Download (3.14 MB) |
| Thermal Radar Config Guide | pdf Download (1.93 MB) |
Milestone Verified
Read verification
Specification
Required Thermal Imaging Radar product(s)
Thermal Radar 2.0 and above.
Has proven compatibility with the following Milestone versions:
-
XProtectExpress2019 R2, 06/19 2019
-
XProtectProfessional2019 R2, 06/19 2019
-
XProtectExpress+2022 R1, 03/08 2022
-
XProtectCorporate2022 R1, 03/08 2022
-
XProtectExpert2022 R1, 03/08 2022
-
XProtectEssential+2022 R1, 03/08 2022
-
XProtectProfessional+2022 R1, 03/08 2022
Is also expected to work with:
-
XProtectExpress2019 R1, 02/05 2019 and later
-
XProtectProfessional2019 R1, 02/05 2019 and later
-
XProtectExpress+2019 R1, 02/05 2019 and later
-
XProtectCorporate2019 R1, 02/05 2019 and later
-
XProtectExpert2019 R1, 02/05 2019 and later
-
XProtectEssential+2019 R1, 02/05 2019 and later
-
XProtectProfessional+2019 R1, 02/05 2019 and later
