Zao VMS Plus
Secured live video transmission from drone, body-worn or in-vehicle cameras over 5G / 4G / PS LTE
Updated on Sunday, June 19, 2022
Soliton Zao VMS Plus and Soliton's bonding encoders provide secure, reliable, and ONVIF compliant live video streams of drones, action (helmet) cameras, in-vehicle cameras, and/or smartphones from anywhere to connect to Milestone XProtect® VMS for mobile surveillance and live video analytics.
What is needed
From Soliton Systems K.K.
-
Soliton Encoder
-
Zao VMS Plus
Field Side Option 1:
Drone / Body-Worn / Action Camera
with Soliton ZAO-S Encoder
Field Side Option 2:
Soliton ZAO App
HQ Side:
Zao VMS Plus
(on-premise or on the cloud)
Drone / Body-Worn / Action Camera
with Soliton ZAO-S Encoder
Field Side Option 2:
Soliton ZAO App
HQ Side:
Zao VMS Plus
(on-premise or on the cloud)
From Milestone Systems
-
Milestone XProtect
HQ Side:
Milestone XProtect®
(on-premise or on the cloud)
Milestone XProtect®
(on-premise or on the cloud)
Featured content
Customer Stories
Japanese police using Soliton and Milestone
Police in Japan live streaming from drones, body cams and vehicles back to the command center.
Law Enforcement, Army Forces, Emergency Centers
Temporary location surveillance by drones or helicopters and special operations team remote support
Overview
How it works
How to install
Overview
Zao VMS Plus - Secured live video transmission from drone, body-worn or in-vehicle cameras over 5G / 4G / PS LTE
Soliton's Zao products are utilized as part of a mobile surveillance solution to enable encrypted live streaming over multiple 5G 4G cellular connections, or satellite or wifi, back to a command and control center. They are used by law enforcement and other emergency and security services to live stream from drones, cars, motorbikes and body-worn action cams back to a command and control center. Each Zao VMS Plus solution combines a management platform for remotely managing units in the field and provides up to 12 simultaneous channels of ONVIF compliant video that can be connected to Milestone XProtect. Zao VMS Plus can be installed in the cloud or on-prem at the destination and is installed within a virtualized server environment which can be in a closed network. The Zao solutions are H.265 HEVC based which gives high reliability, even in challenging 4G environments, providing broadcast-quality full HD at low latency. Latency can be set between 240ms and 30 seconds, typically 700ms.Key features
- Use any camera: Drones, drones with thermal cameras, action cameras, helmet cameras, hidden cameras, in-vehicle cameras, and/or smartphone cameras.
- Use any connection: Live streaming over multiple 5G / 4G / Public Safety LTE networks with bonding, load balancing, packet sort, and error correction.
- Technologies: H.265 / HEVC codec and Soliton's RASCOW protocol to optimize video transmission settings based on the dynamic mobile network bandwidth
- Security: AES 256-bit encryption and authentication. Latency: Low latency (as low as 240ms) while providing reliable HD quality live streams
- Usability: The world's smallest H.265 bonding encoder with 350 grams of weight and small size including battery and it works with external cameras.
How it works
1 of 5
Short animated preview on why Soliton encrypted live streaming is ideal for police, law enforcement and emergency services.
2 of 5

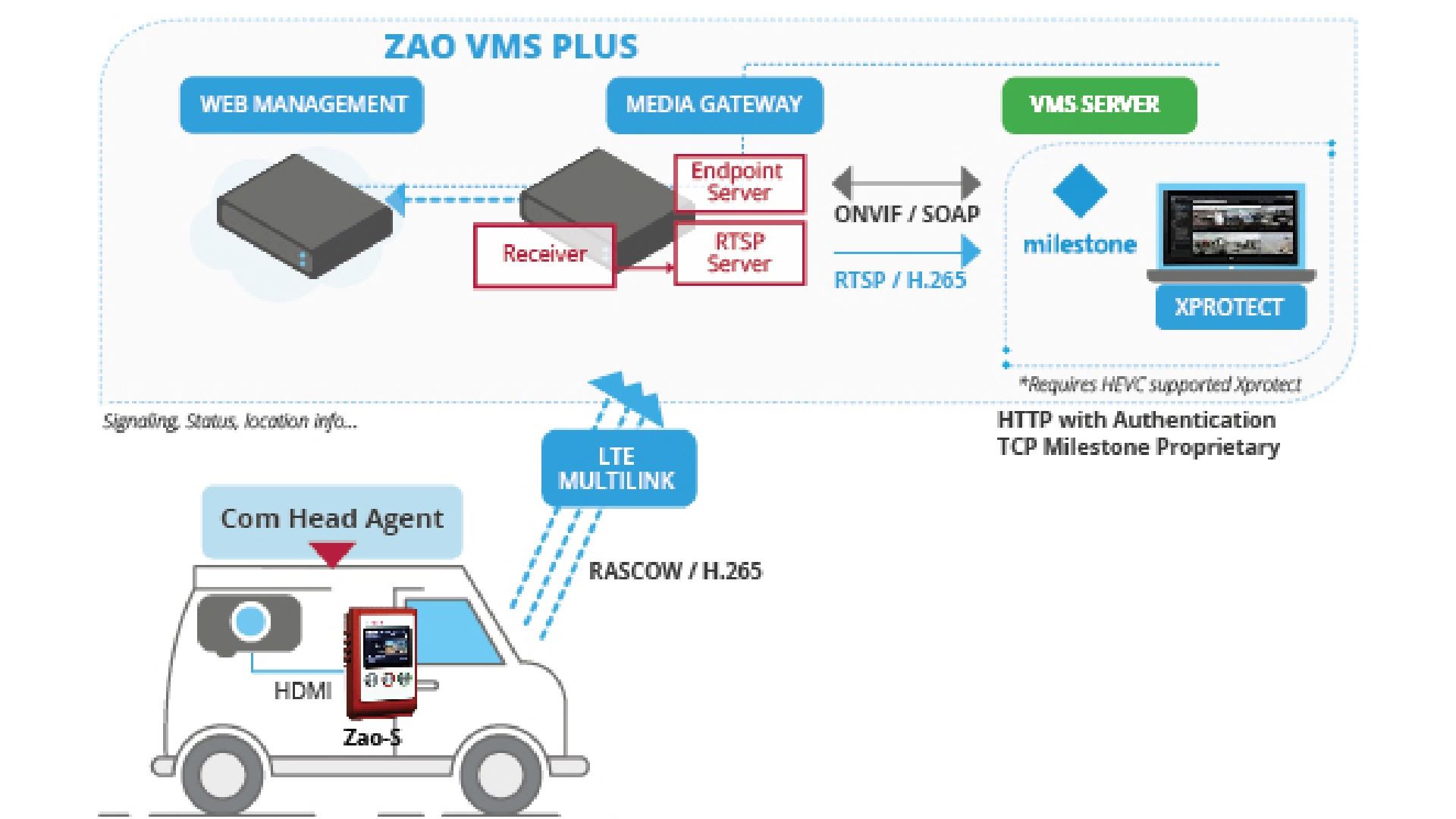

VMS Plus is installed in a virtualized environment and consist of two elements - media gateway and the management platform allowing remote people to manage the transmission units in the field.
3 of 5
Mobile surveillance application examples with Milestone XProtect®
4 of 5
Police demo video in action (reconstruction)
5 of 5

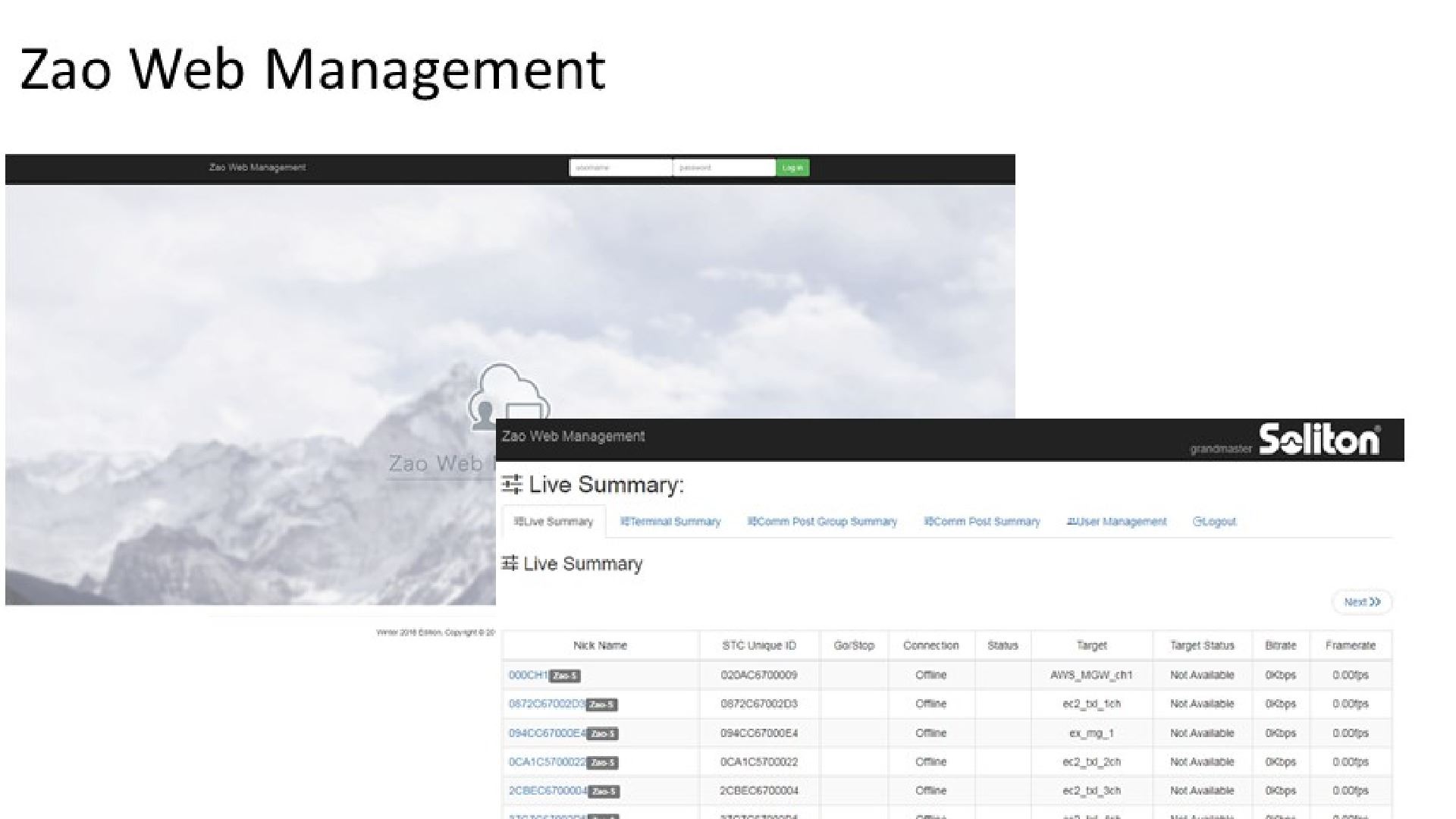

Part of Zao VMS Plus includes management platform for remotely managing the live transmission units in the field.
How to install
Documentation
This is where you can find additional documentation
| Installation Procedure for Zao VMS Plus | pdf Download (1.33 MB) |
| Soliton and Milestone Integration Whitepaper | pdf Download (1.23 MB) |
| Testing instructions for Soliton's ZAO H.265 Encoder App and integration with Milestone XProtect® | pdf Download (90.01 KB) |
Milestone Verified
Read verification
Specification
Required Soliton Systems K.K. product(s)
Zao VMS Plus v201b1 (2062) or above
ZAO-S v3.3.1 or above
ZAO App v1.3.0 or above
Has proven compatibility with the following Milestone versions:
-
XProtectExpress+2020 R1, 02/11 2020
-
XProtectCorporate2020 R1, 02/11 2020
-
XProtectExpert2020 R1, 02/11 2020
-
XProtectEssential+2020 R1, 02/11 2020
-
XProtectProfessional+2020 R1, 02/11 2020
Is also expected to work with:
-
XProtectExpress+2018 R3, 10/02 2018 and later
-
XProtectCorporate2018 R3, 10/02 2018 and later
-
XProtectExpert2018 R3, 10/02 2018 and later
-
XProtectEssential+2018 R2, 06/07 2018 and later
-
XProtectProfessional+2018 R3, 10/02 2018 and later
