TS-hx77A Series

Rackmount NAS with Ryzen CPU, 10GbE, PCIe Gen4, and SMB/iSCSI support for secure storage

Actualizada el jueves, 14 de agosto de 2025
The TS-hx77A series is a rackmount NAS from 2U and above, powered by AMD Ryzen 7000-series CPU and DDR5 ECC memory. It features 12 ~ 30 drive bays, dual 10GbE, dual 2.5GbE, and PCIe Gen4 slots for flexible expansion. Ideal for SMB/iSCSI storage in surveillance and virtualization workloads.
Technology Partner
Verificada por Milestone
Hasta el < 100
What is needed

Desde QNAP Systems, Inc.

  • TS-hx77A Series
Using QNAP NAS as XProtect's external storage does NOT require additional licenses.

Desde Milestone Systems

  • Milestone XProtect
Overview
How it works
How to install
Overview

TS-hx77A Series - Rackmount NAS with Ryzen CPU, 10GbE, PCIe Gen4, and SMB/iSCSI support for secure storage

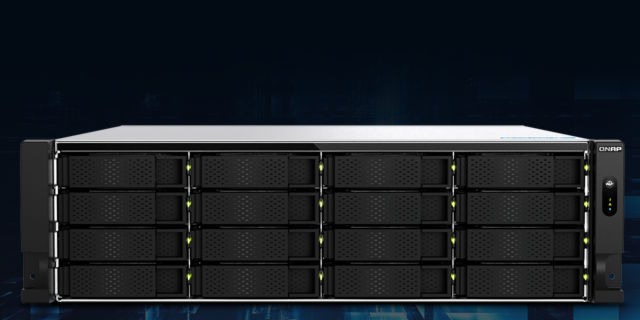

The QNAP TS‑hxA series is a high-performance enterprise NAS in a 2U and above rackmount form factor, tailored for demanding Tier‑2 storage, virtualization, 4K video workflows, and PB-scale deployments and support up to 128 GB (4×32 GB) DDR5 (including ECC) for robust multitasking.
It features 12 ~ 30 hot-swappable SATA 3.5"/2.5" drive bays, dual M.2 2280 PCIe Gen 5 ×2 slots for NVMe SSD caching or storage pools, and three PCIe Gen 4 slots for expansion cards such as 25/10 GbE, SAS/SATA controllers, or GPU/Fibre Channel cards.
Networking includes two 10GBASE‑T and two 2.5GbE RJ45 ports, supporting port trunking and jumbo frames for high-throughput and resilient connectivity.
This system supports up to 5,000 concurrent CIFS connections (with maximum RAM), features long-term availability (support expected through 2030), and allows PB-scale expansion by connecting up to eight 24-bay JBOD enclosures which can be one of the the best storage option for keep surveillance footages.

Key features

  • Equipped with Ryzen CPU paired with DDR5 memory offering exceptional throughput for concurrent workflows.
  • Offers all hot‑swappable SATA bays plus dual M.2 PCIe Gen 5 NVMe slots delivering accelerated I/O and improved responsiveness for heavy workloads
  • Includes dual 10GBASE‑T and dual 2.5GbE ports with support for port trunking and jumbo frames ensuring fast, resilient network access
  • 3x PCIe Gen 4 slots allow adding network, JBOD controllers, FC, or GPU cards (for virtualization or acceleration), enabling scalable options
  • Built-in HBS feature enable hybrid backup and real-time sync across remote NAS or cloud, ensuring recording files safety.
How it works

How to install

Documentation

This is where you can find additional documentation

Verificada por Milestone Read verification

Specification

Required QNAP Systems, Inc. product(s)
QTS 5.x and above. Or QuTS hero 5.x and above.

Has proven compatibility with the following Milestone versions:

  • XProtect
    Express+
    2024 R2, 11/07 2024
  • XProtect
    Corporate
    2024 R2, 11/07 2024
  • XProtect
    Expert
    2024 R2, 11/07 2024
  • XProtect
    Essential+
    2024 R2, 11/07 2024
  • XProtect
    Professional+
    2024 R2, 11/07 2024

Is also expected to work with:

  • XProtect
    Express+
    2020 R1, 02/11 2020 y posteriores
  • XProtect
    Corporate
    2020 R1, 02/11 2020 y posteriores
  • XProtect
    Expert
    2020 R1, 02/11 2020 y posteriores
  • XProtect
    Essential+
    2020 R1, 02/11 2020 y posteriores
  • XProtect
    Professional+
    2020 R1, 02/11 2020 y posteriores
