Pelco Analytic Configuration Plugin
Pelco Analytic Configuration Plugin for XProtect Management Client
Updated on Wednesday, February 1, 2023
The Analytics Configuration plugin is used in conjunction with XProtect Management Client by Milestone to configure advanced analytics on Pelco cameras. Pelco cameras have not traditionally exposed a mechanism in the camera’s web application to setup these analytics, thus a tool is necessary.
What is needed
From Pelco, Inc
-
Pelco Analytic Configuration Plugin
No license is needed
From Milestone Systems
-
Milestone XProtect
XProtect 2021 R2 or higher
Overview
How it works
How to install
Overview
Pelco Analytic Configuration Plugin - Pelco Analytic Configuration Plugin for XProtect Management Client

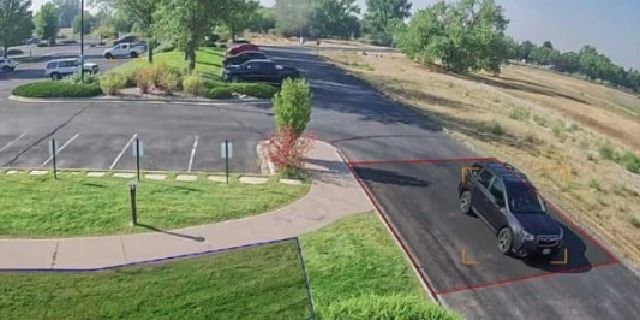

The Analytics Configuration plugin is used in conjunction with XProtect Management Client by Milestone to configure advanced analytics on Pelco cameras. Pelco cameras have not traditionally exposed a mechanism in the camera’s web application to setup these analytics, thus a tool is necessary for configuration. Advanced analytics supported by the plugin include the following behaviors, objects crossing beam, objects enter area, objects leave area, object loitering, object not present in area, object appears or enters area, objects in area, object stops in area, direction violated, object counterflow, object counter, and object in zone.Key features
- Configuration of Pelco Video Analytic can be done within XProtect Management Client.
- Support for all Pelco cameras with Smart Analytic or Advanced Analytics.
- Create object detections zones, tripwires, counterflow zones, counter tripwires plus exclude zones.
How it works
1 of 12

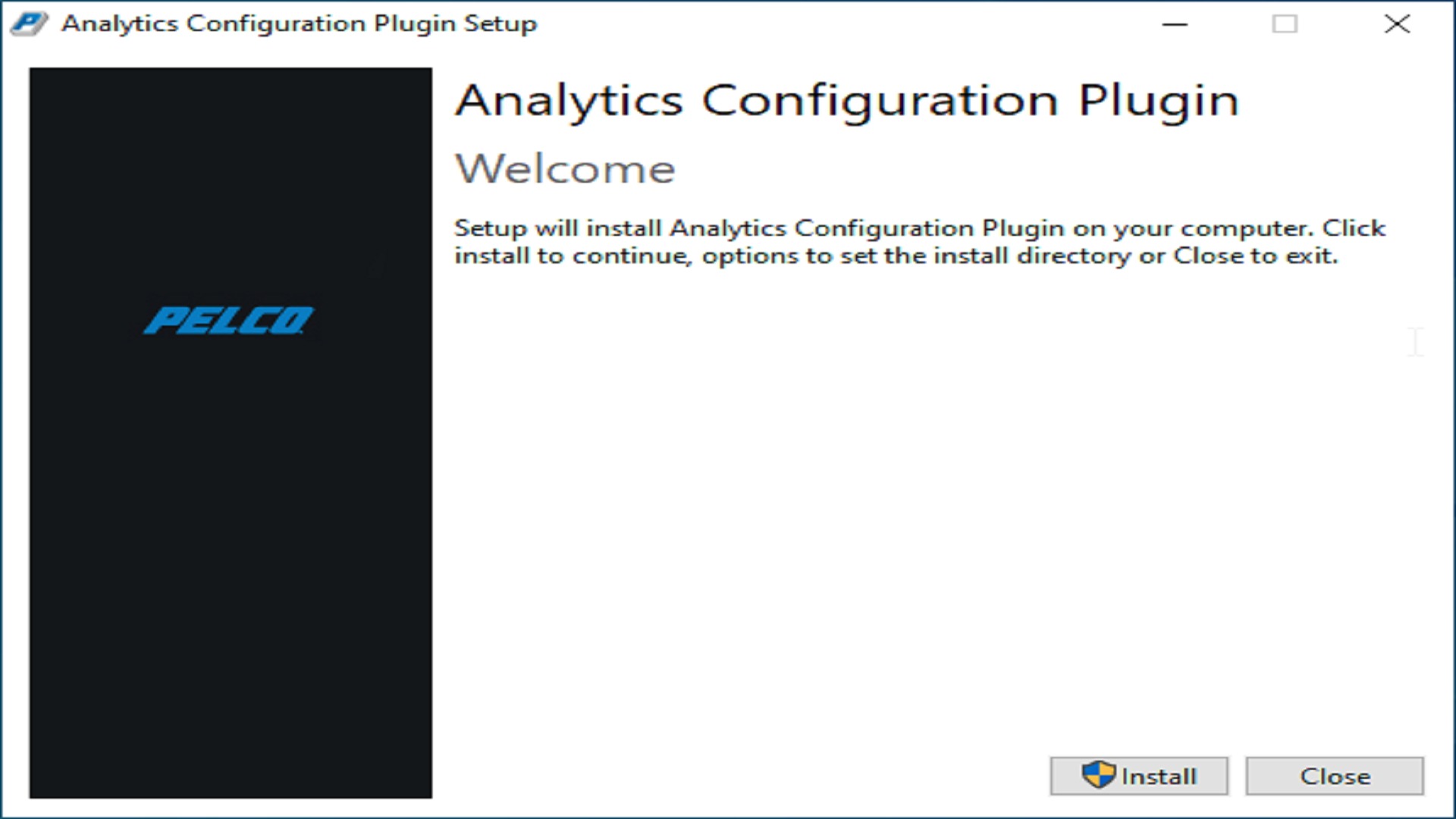

Download the software and install on XProtect Management Client by simply press install button.
2 of 12

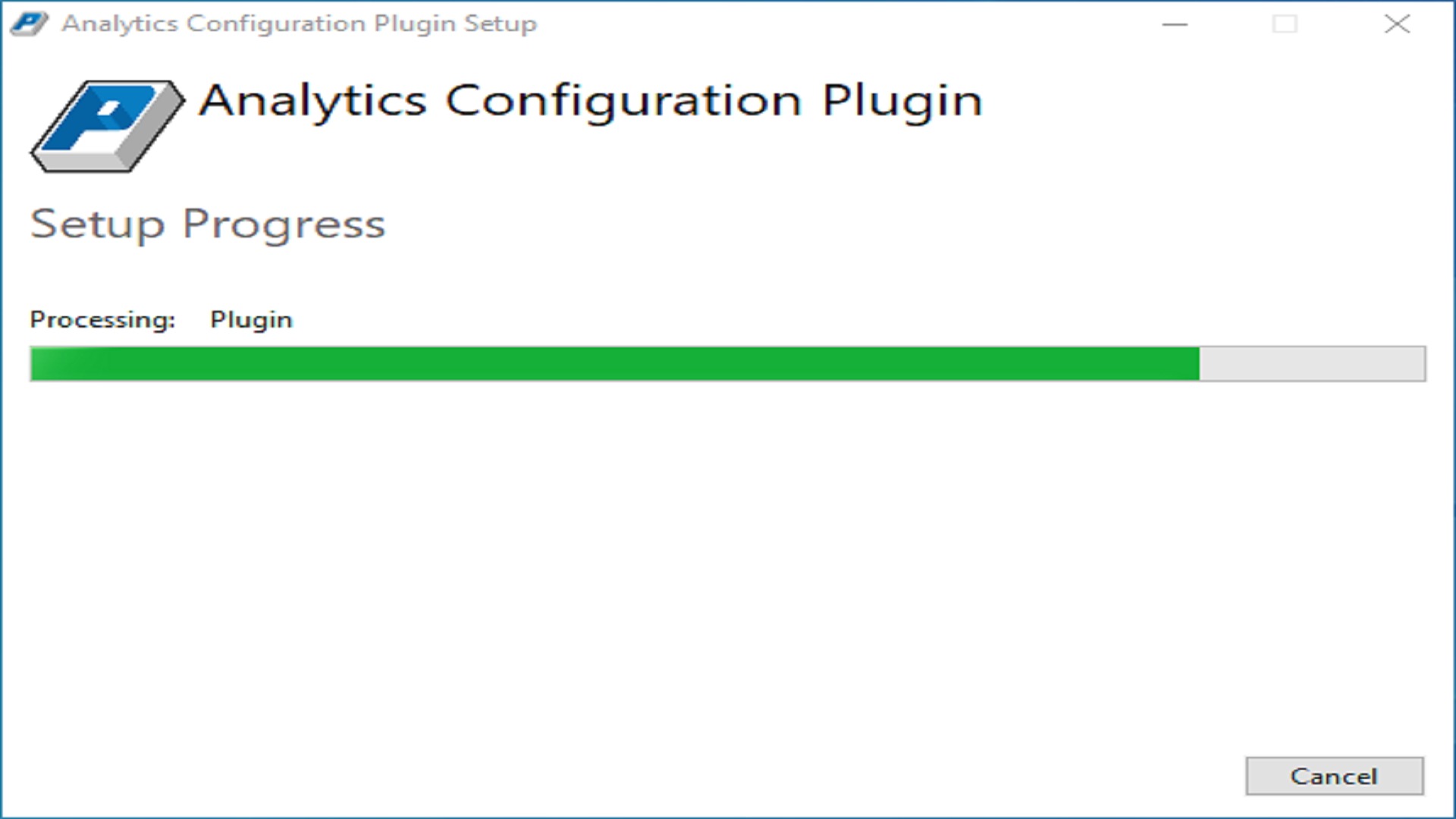

Installation will start
3 of 12

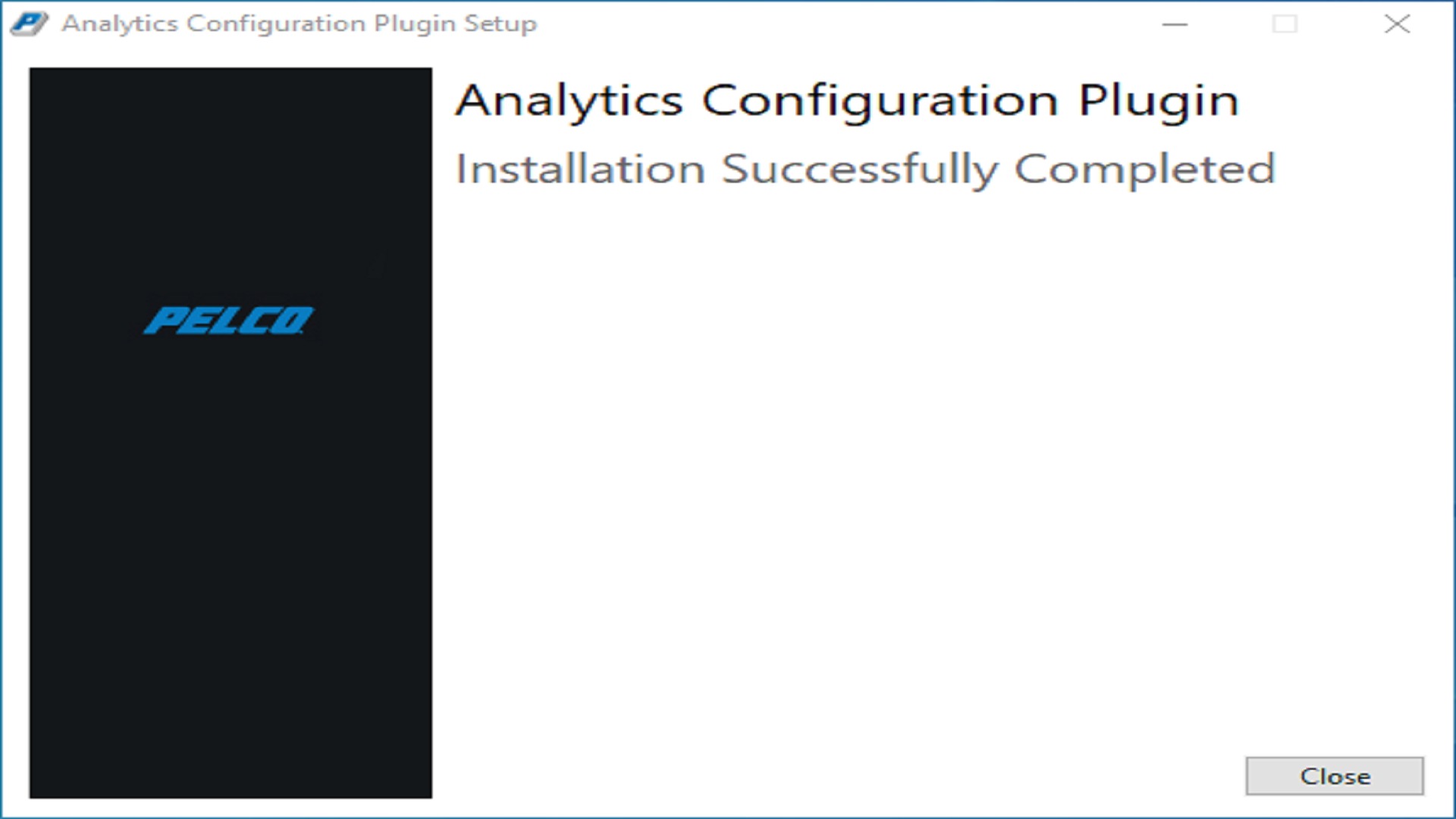

When installation is done, press close and open XProtect Management Client where you will find a new analytic tab for supported cameras.
4 of 12

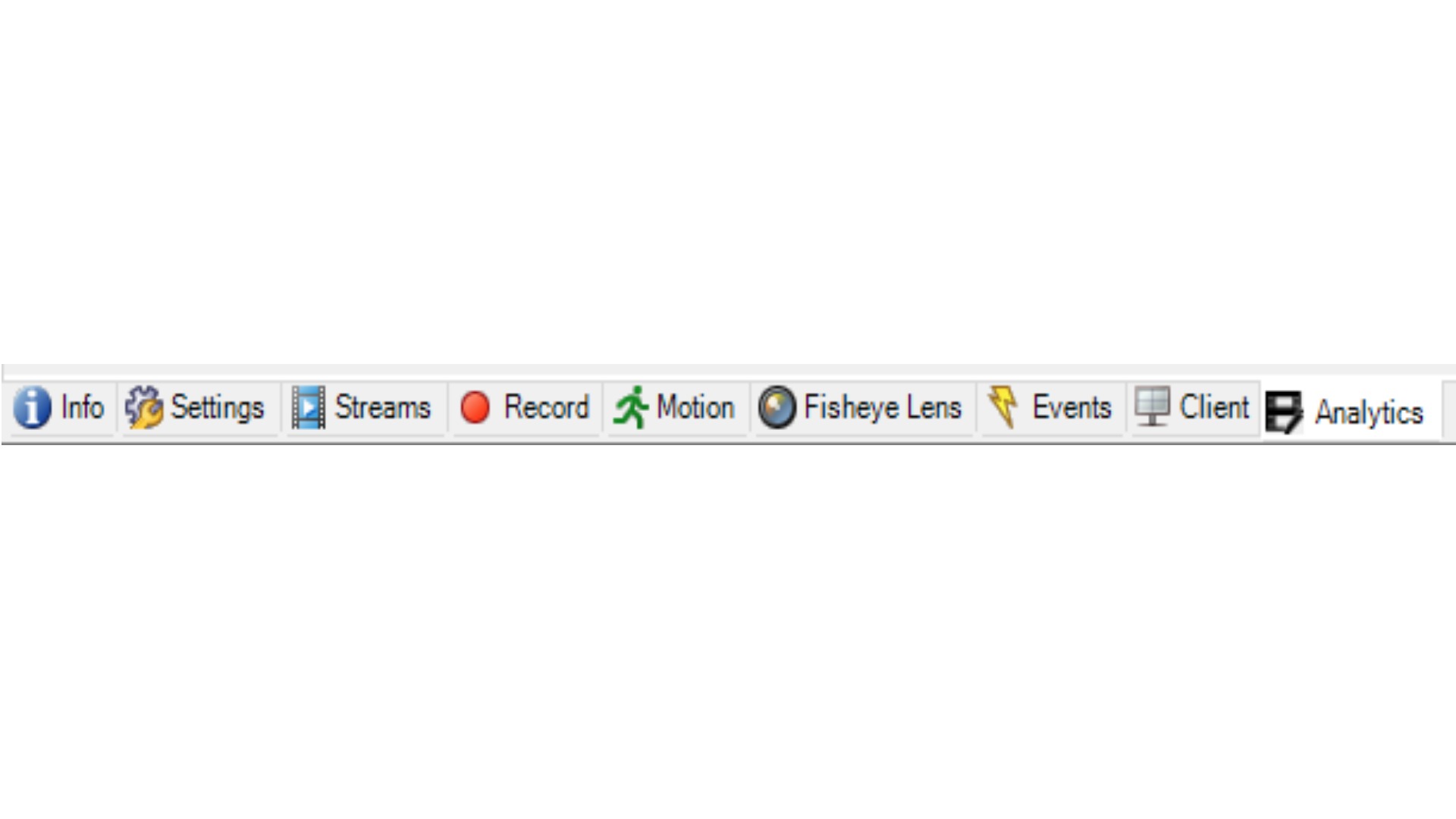

New Analytics tab shown in XProtect Management Client
5 of 12

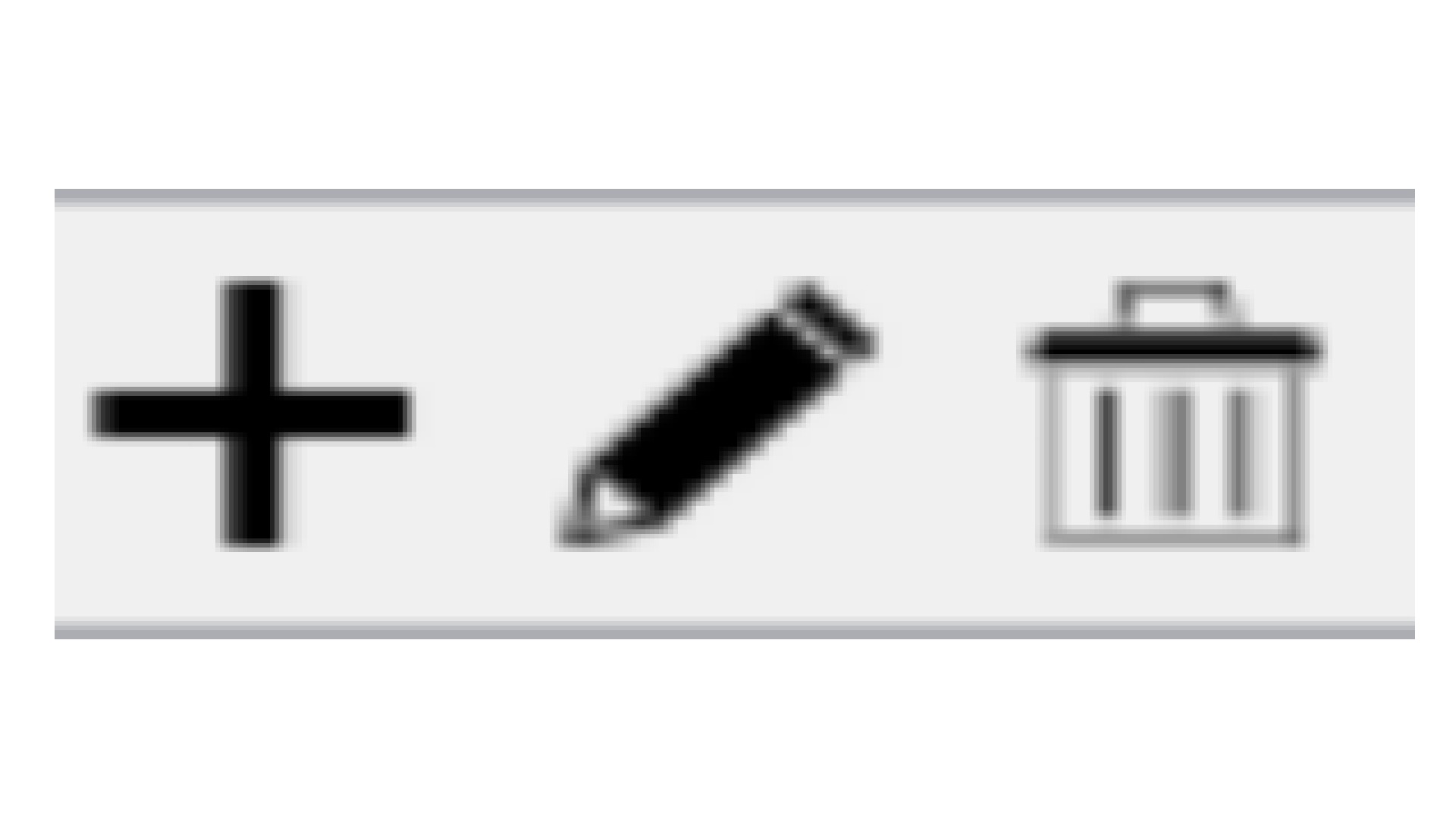

Add new analytic, edit or remove one already added analytic.
6 of 12

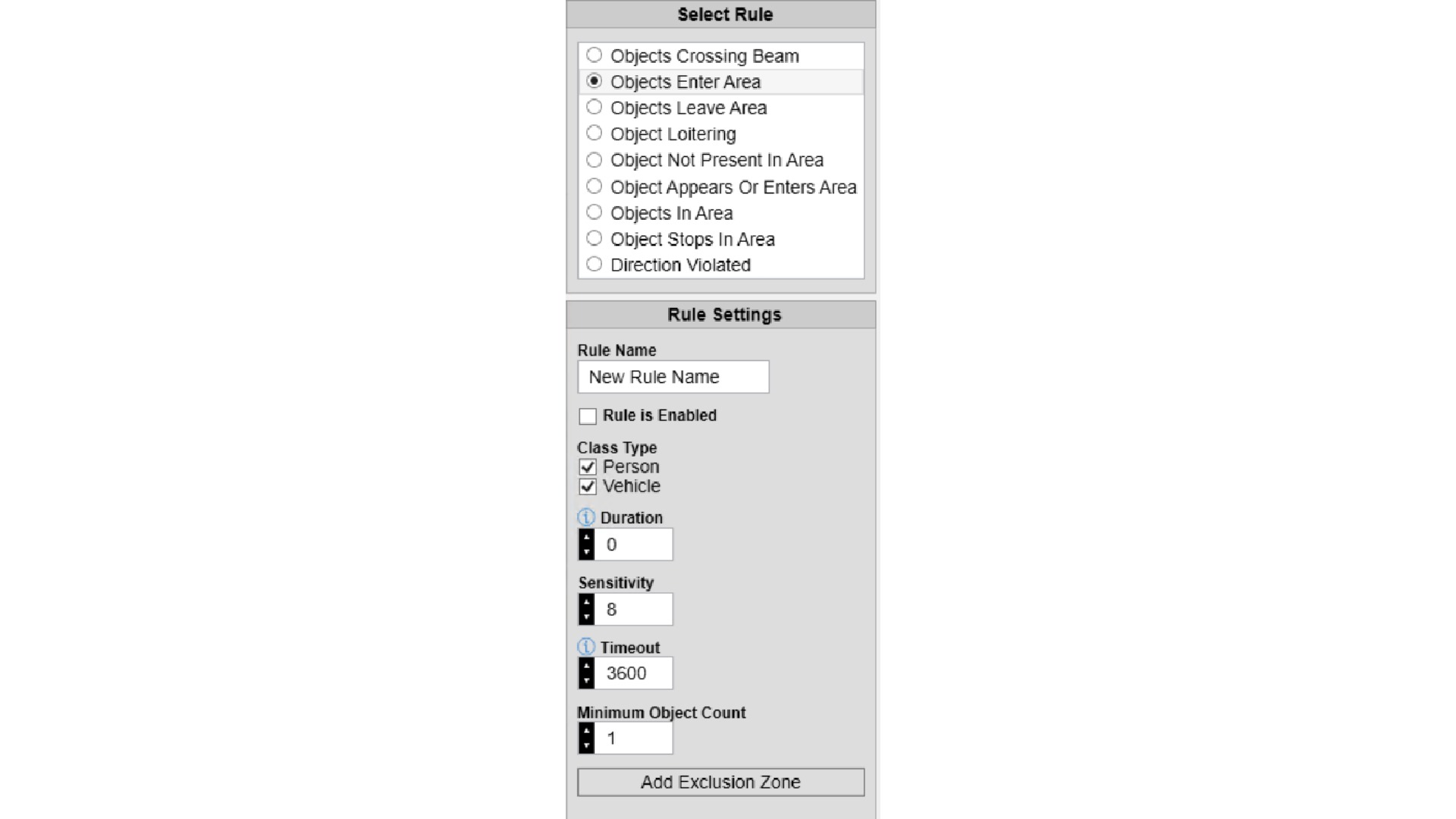

Select the rule you like to add to the camera. Available rules depends on camera type.
7 of 12

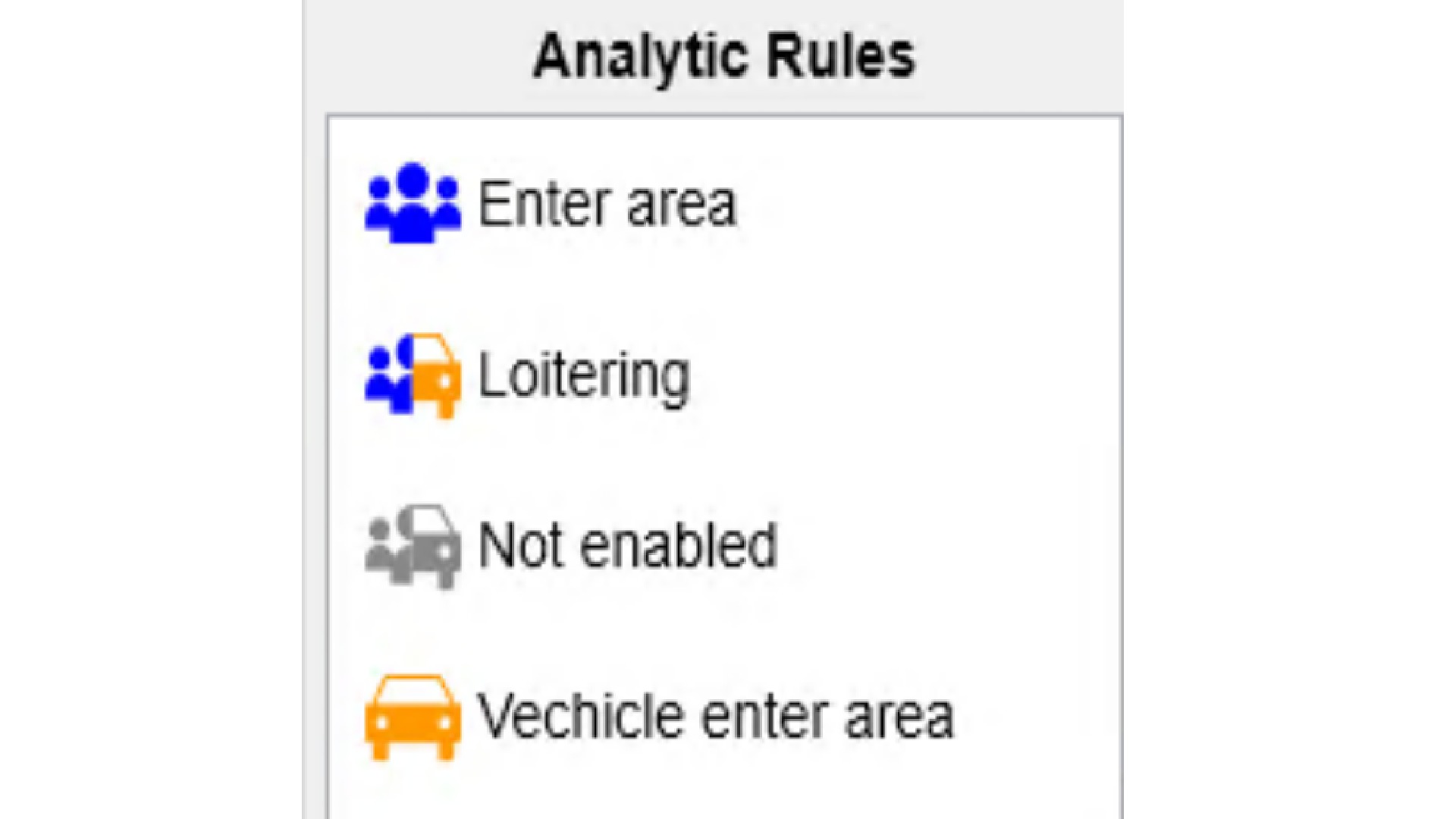

Blue indicates only person detection only. Blue and orange both person and vehicle detection. Gray indicates not enabled rule. Orange indicates vehicle detection only.
8 of 12

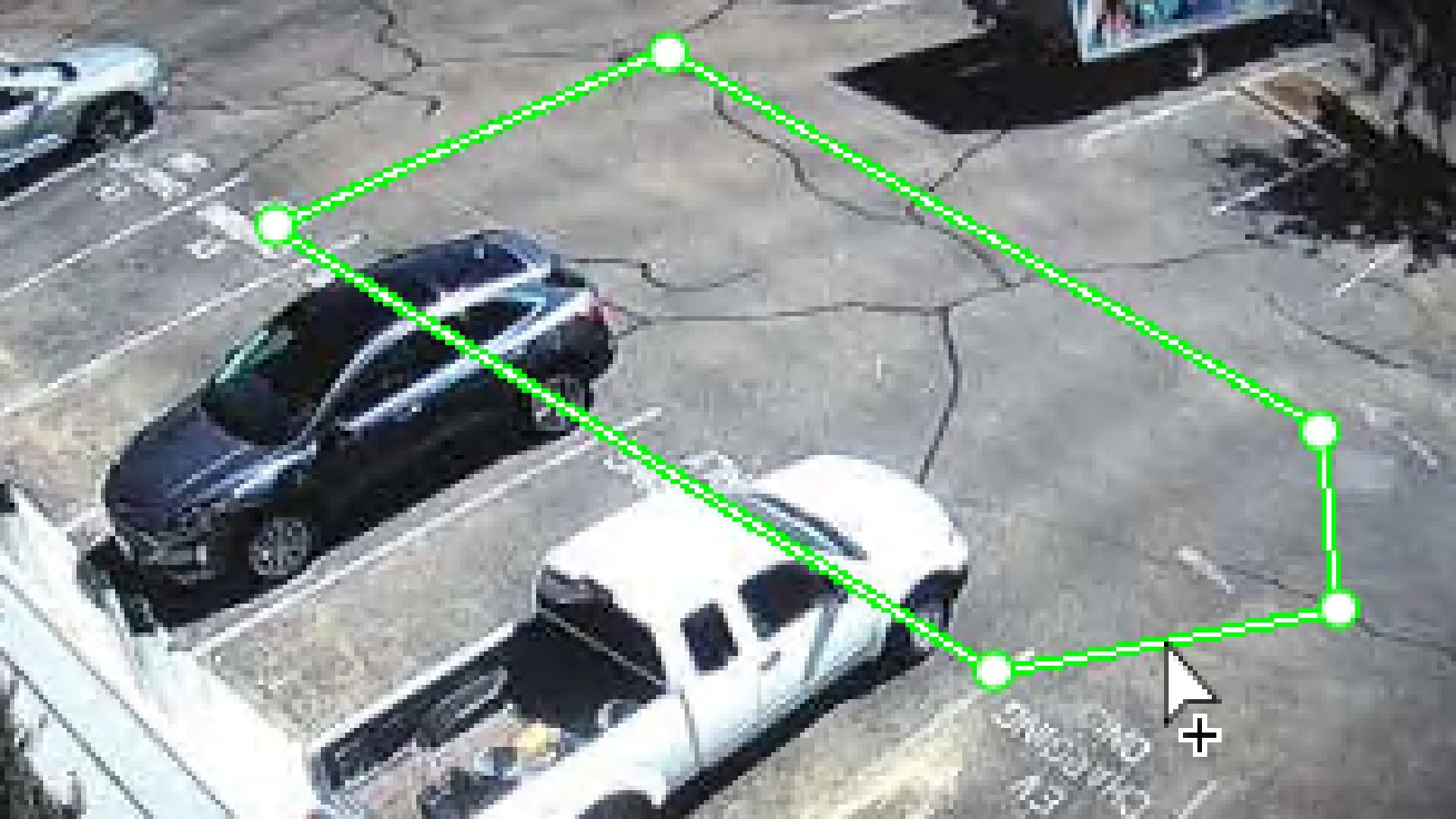

Select a zone in the video image, you can add points and also remove points as needed.
9 of 12

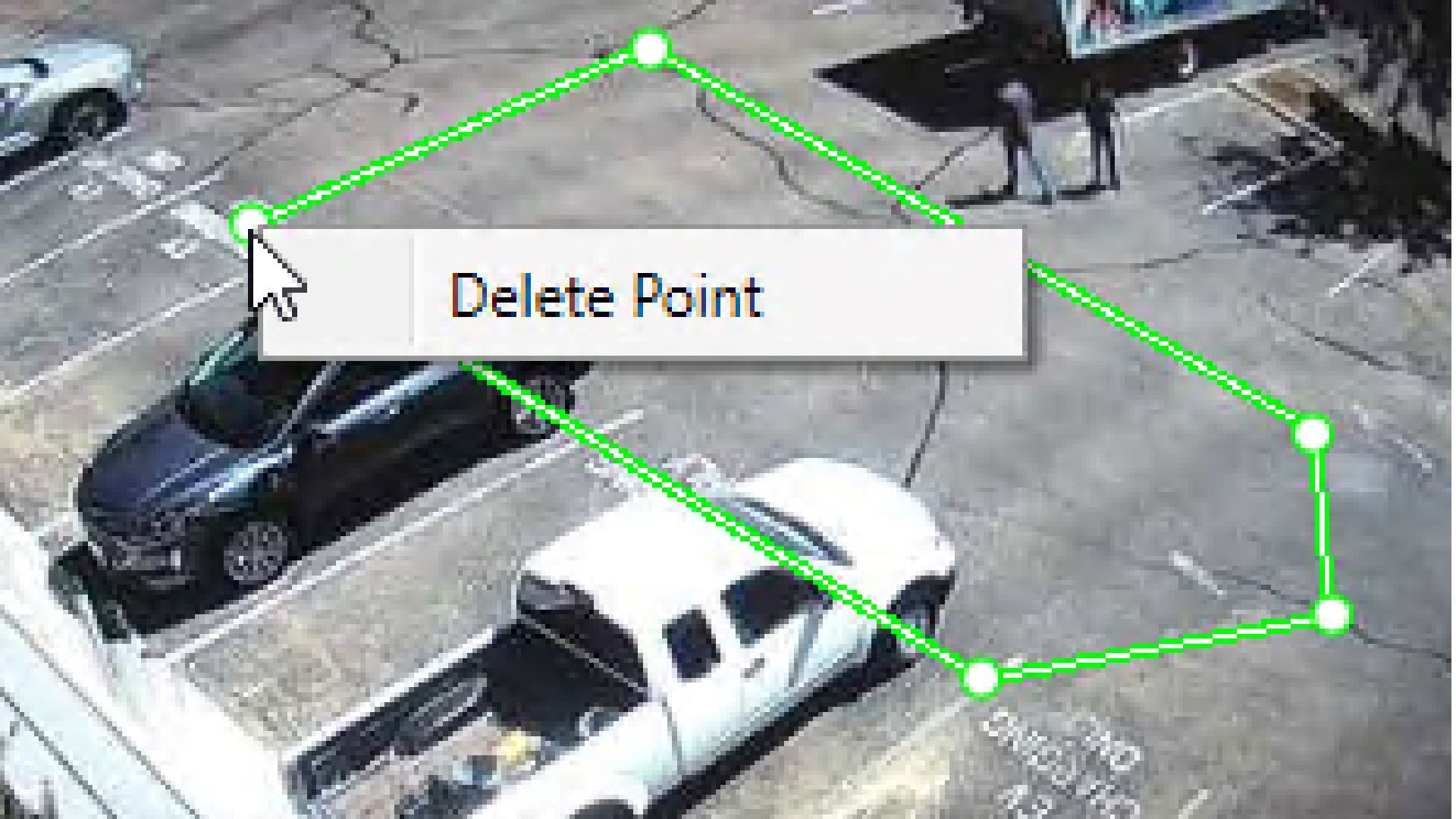

Right click a point to remove it.
10 of 12

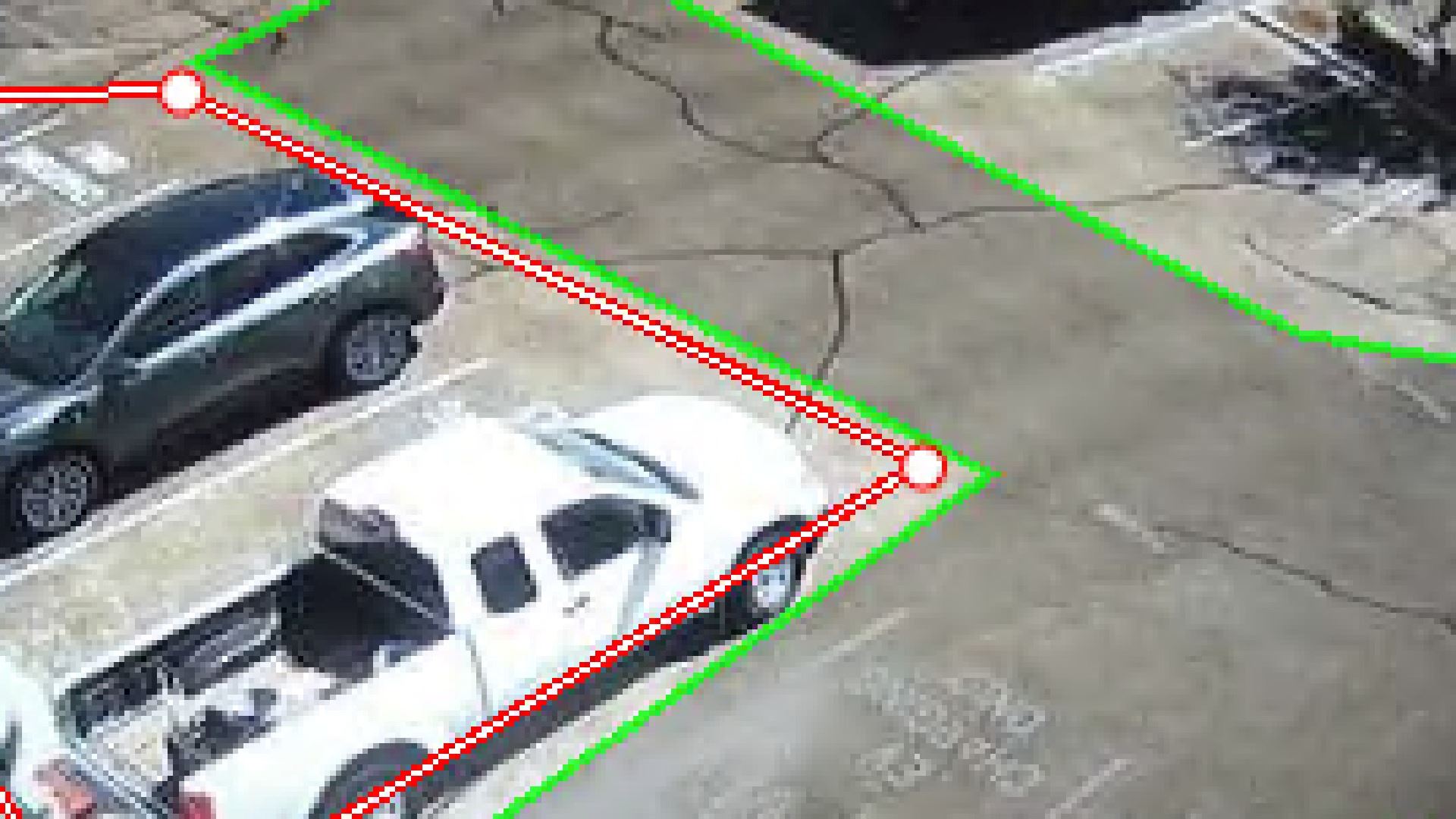

Exclusion zones can also be added to not detect analytic objects.
11 of 12

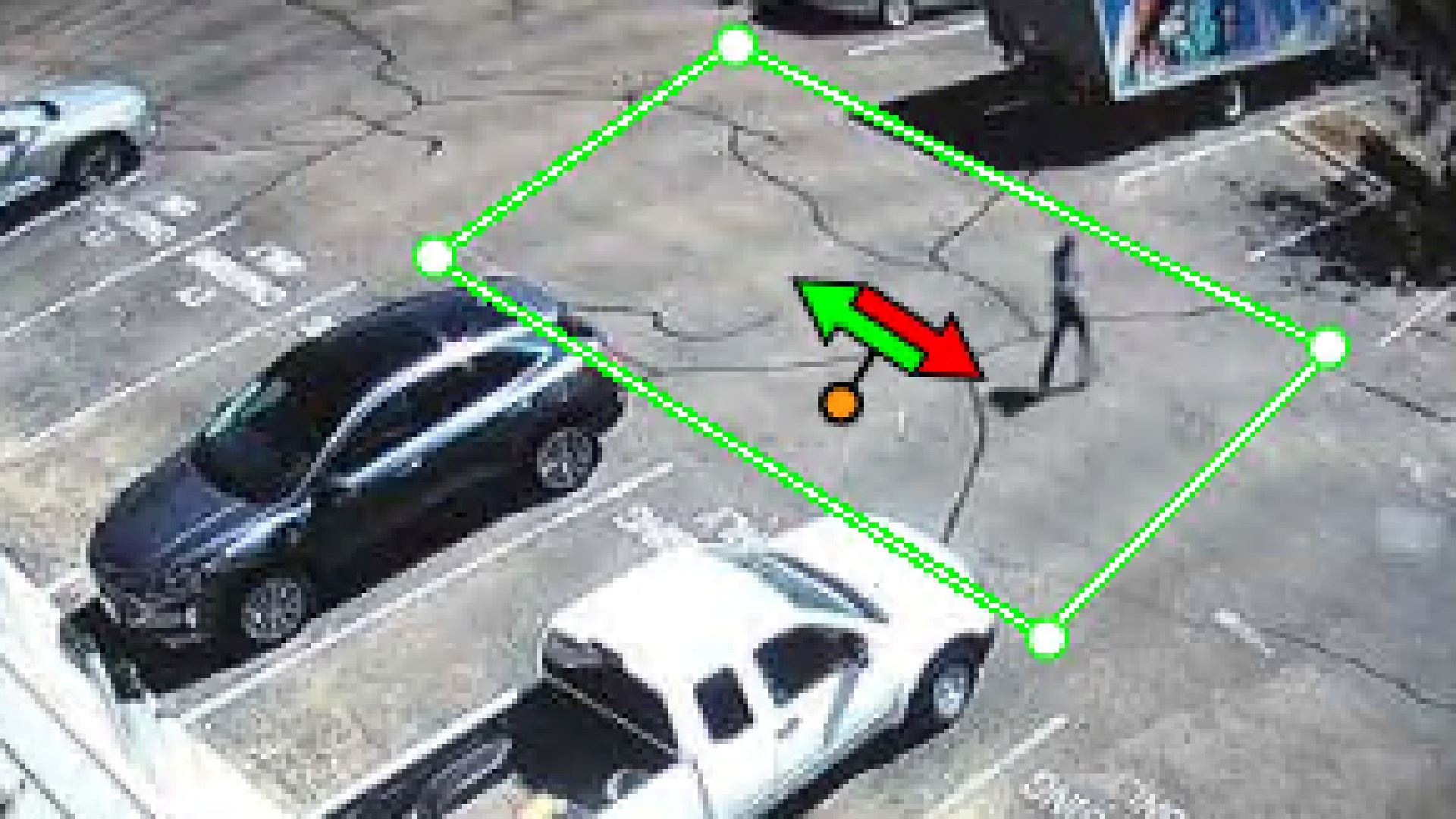

Directional zone example.
12 of 12

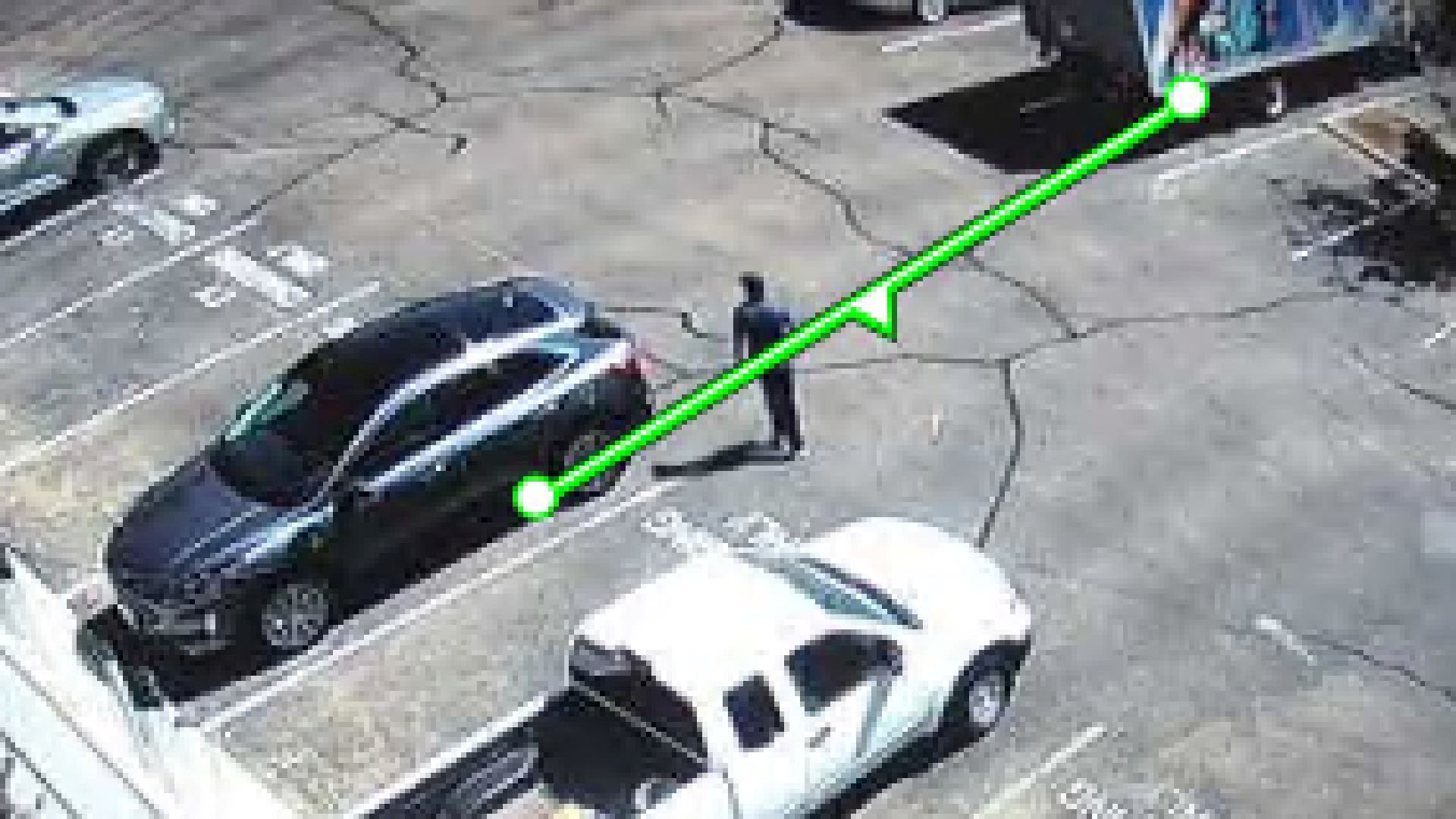

Crossing beam example.
How to install
Documentation
This is where you can find additional documentation
| Installation and Operation Guide | pdf Download (3.22 MB) |
Milestone Verified
Read verification
Installers
Here you can find more information about installers and installation guides
| Title | Installer Guide | Installer Software |
|---|---|---|
| exe Download (98.23 MB) | ||
| exe Download (98.28 MB) |
Specification
Required Pelco, Inc product(s)
Pelco Analytic Configuration Plugin version 1.0.1.7348 or later
Pelco cameras with Smart Analytic or Advanced Analytics, we always recommend using latest firmware
Has proven compatibility with the following Milestone versions:
-
XProtectExpress+2022 R2, 06/13 2022
-
XProtectCorporate2022 R2, 06/13 2022
-
XProtectExpert2022 R2, 06/13 2022
-
XProtectEssential+2022 R2, 06/13 2022
-
XProtectProfessional+2022 R2, 06/13 2022
Is also expected to work with:
-
XProtectExpress+2022 R2, 06/13 2022 and later
-
XProtectCorporate2022 R2, 06/13 2022 and later
-
XProtectExpert2022 R2, 06/13 2022 and later
-
XProtectEssential+2022 R2, 06/13 2022 and later
-
XProtectProfessional+2022 R2, 06/13 2022 and later
