Magos Area Surveillance Systems - MASS
MASS is a fully automated system for managing radars and PTZ cameras to detect perimeter intrusions.
Updated on Friday, August 16, 2019
MASS is a fully automated system for managing ground staring radars and PTZ cameras to detect intrusion. Upon intrusion detection, MASS automatically slew to cue a PTZ camera to lock and continuously track the target. MASS sends alert to the VMS to display real-time video for target verification.
What is needed
From Magos systems
-
MASS Client
MASS 2.24
MASS 2.25
MASS 2.26
MASS 2.28
MASS 2.29
MASS 3.0
MASS 2.25
MASS 2.26
MASS 2.28
MASS 2.29
MASS 3.0
From Milestone Systems
-
Milestone XProtect
XProtect Corporate 2016 or Higher
XProtect Enterprise 2016 or Higher
XProtect Professional 2016 or Higher
XProtect Express 2016 or Higher
XProtect Enterprise 2016 or Higher
XProtect Professional 2016 or Higher
XProtect Express 2016 or Higher
Overview
Magos Area Surveillance Systems - MASS - MASS is a fully automated system for managing radars and PTZ cameras to detect perimeter intrusions.
MASS is a windows service that is running as a web server. MASS web client provides access to MASS server through any device that supports a web browser connected to the network where MASS is installed.MASS is installed on a server, desktop or laptop that is running Windows OS Pro.
MASS server requires a license to run and each sensor in the system (radar or PTZ camera) needs license to operate. Integration to a VMS / Access Control requires a license as well.
Key features
- Each radar can detect and track up to 100 targets simultaneously, sending tracking data to MASS.
- MASS control all associated PTZ cameras and assign each PTZ camera a target to track.
- MASS client map shows targets in real-time with their tracking data, radar coverage area, detection area and PTZ field of view cones tracking targets.
- When there are more targets than PTZ cameras, MASS will direct PTZ cameras to switch from one target to another target.
- Operator can override PTZ auto tracking and control PTZ cameras from within MASS or from the VMS.
How it works
1 of 3

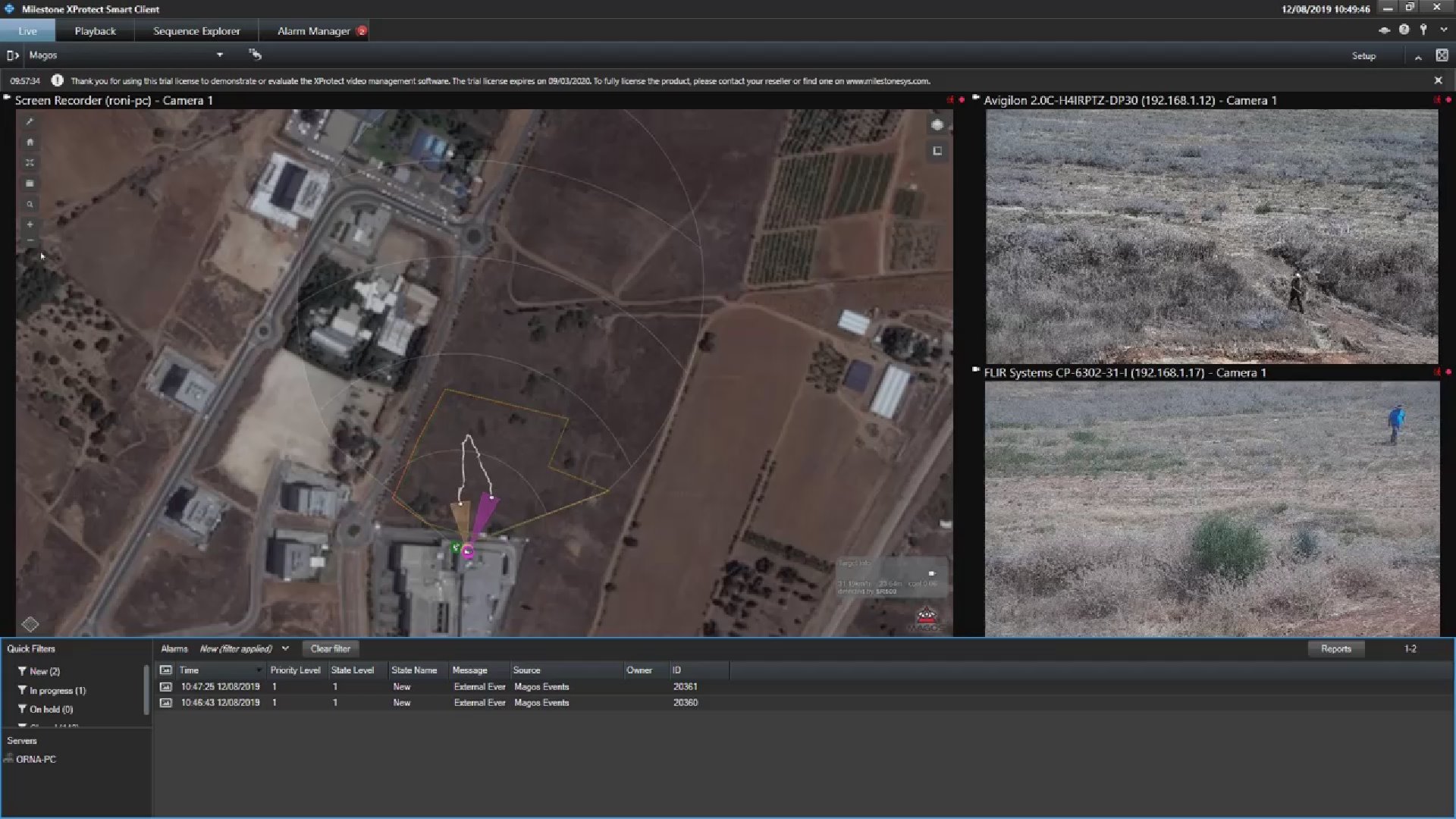

Live view of MASS client showing map with targets as a webpage inside Smart Client next to live video of the two targets.
2 of 3
Smart client playback of an event showing MASS web client map with targets paths and PTZ tracking with recorded video of two targets.
3 of 3

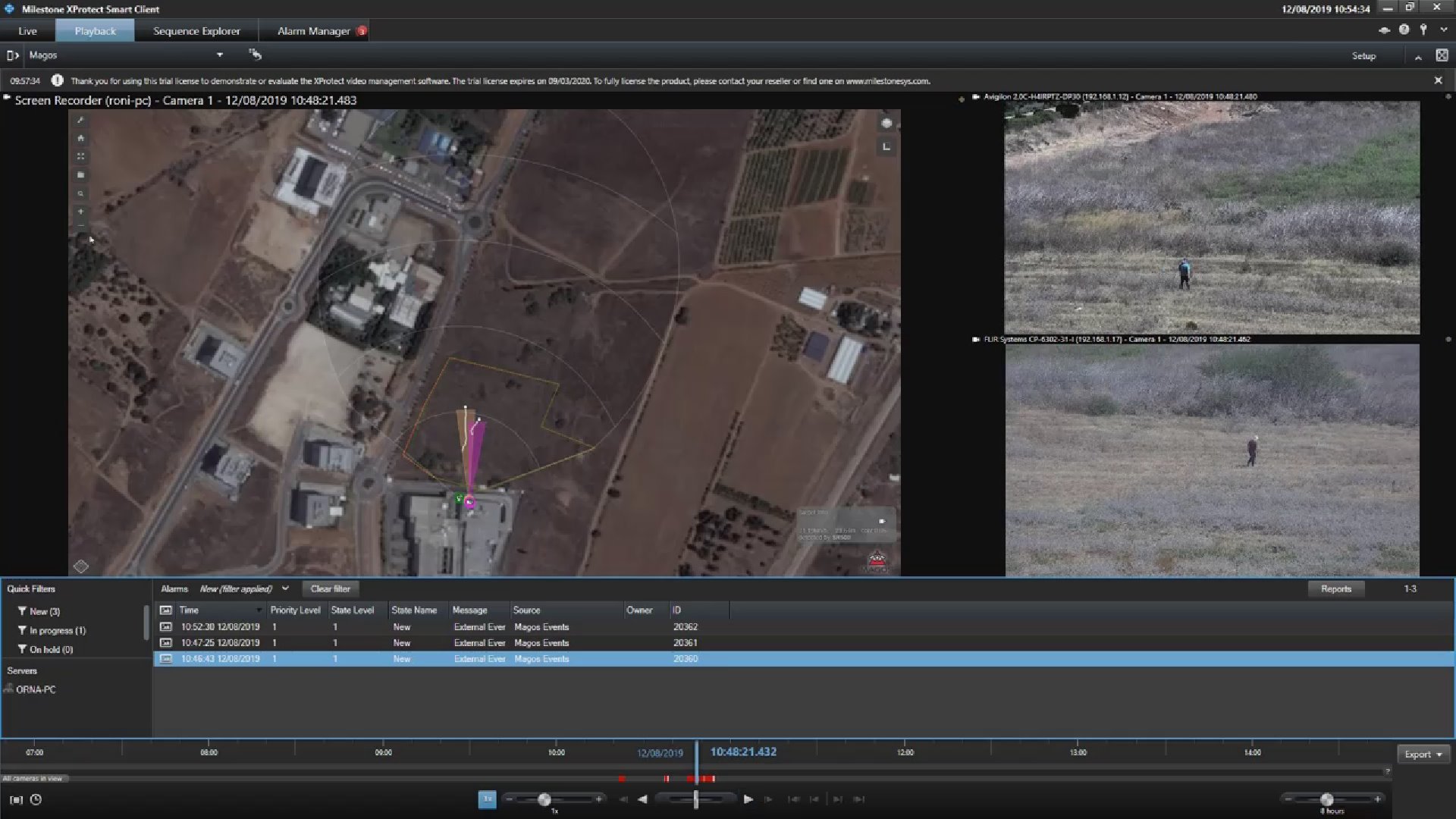

Tracking two different targets in live mode and playback mode.
Showing MASS as web client alongside two PTZ cameras tracking the targets.
How to install
Documentation
This is where you can find additional documentation
| MASS Software User guide with installation guide. | pdf Download (3.66 MB) |
| MASS Integration to Milestone User Guide | pdf Download (1.31 MB) |
Milestone Verified
Read verification
Specification
Required Magos systems product(s)
MASS 2.x or MASS 3.x
Has proven compatibility with the following Milestone versions:
-
XProtectExpress2019 R2, 06/19 2019
-
XProtectProfessional2019 R2, 06/19 2019
-
XProtectExpress+2019 R2, 06/19 2019
-
XProtectCorporate2019 R2, 06/19 2019
-
XProtectExpert2019 R2, 06/19 2019
-
XProtectProfessional+2019 R2, 06/19 2019
-
XProtectEnterprise2016 R2, 06/01 2016
Is also expected to work with:
-
XProtectExpress2016 R2, 06/01 2016 and later
-
XProtectProfessional2016 R2, 06/01 2016 and later
-
XProtectExpress+2017 R2, 06/08 2017 and later
-
XProtectCorporate2016 R2, 06/01 2016 and later
-
XProtectExpert2016 R2, 06/01 2016 and later
-
XProtectProfessional+2017 R2, 06/08 2017 and later
-
XProtectEnterprise2016, 12/15 2015 and later
