Integrate Senstar perimeter sensors to XProtect
Provides integration from Senstar physical perimeter intrusion detection sensors to XProtect.
Updated on Sunday, June 19, 2022
From within XProtect users can:
View zone status on a map (zones shown as lines or as point icons)
View video associated with alarms
Acknowledge and classify alarms
See equipment failure and tamper events
Read the exact meter/foot number of the point of intrusion, for point-locating sensors
View zone status on a map (zones shown as lines or as point icons)
View video associated with alarms
Acknowledge and classify alarms
See equipment failure and tamper events
Read the exact meter/foot number of the point of intrusion, for point-locating sensors
What is needed
From Senstar Corporation
-
Network Manager
-
NMS-XProtect Gateway
Network Manager Part Number 00FG0220, version 2.44 or newer
NMS-XProtect Gateway Part Number 00SW0280, version 2.44 or newer
NMS-XProtect Gateway Part Number 00SW0280, version 2.44 or newer
From Milestone Systems
-
Milestone XProtect
Milestone XProtect
Overview
How it works
How to install
Overview
Integrate Senstar perimeter sensors to XProtect - Provides integration from Senstar physical perimeter intrusion detection sensors to XProtect.
Senstar's XProtect gateway software provides complete, bi-directional integration between Senstar physical perimeter intrusion detection systems (PIDS) and XProtect. Based on the Milestone Integration Platform Software Development Kit (MIP SDK) , the integration supports all versions of Milestone XProtect, including the free Essentials+ version.Display zone alarms and status information generated by
Senstar sensors within XProtect®
• Supported sensor data includes sensor/zone alarms, enclosure tamper event, sensor supervision events, diagnostic faults, communication failures
• Support for current Senstar perimeter intrusion detection
sensors, including FlexZone®, FiberPatrol®, LM100, FP400, OmniTrax®, UltraWave™, UltraLink™ I/O, and XField®
• Alarm Logic Engine support
• Control sensor outputs (relays, LM100 light levels, self-test activations)
• Invoke rules based on sensor events to perform all
supported XProtect actions
Key features
- Display zone alarms and status information generated by Senstar sensors within XProtect®
- Support for current Senstar perimeter intrusion detection sensors - FlexZone®, FiberPatrol®, LM100, FP400, OmniTrax®, UltraWave™, XField, UltraLink
- Invoke rules based on sensor events to perform all supported XProtect actions
- Control sensor outputs (relays, LM100 light levels, self-test activations)
- Supported sensor data includes sensor/zone alarms, enclosure tamper event, sensor supervision events, diagnostic faults, communication failures
How it works
1 of 3

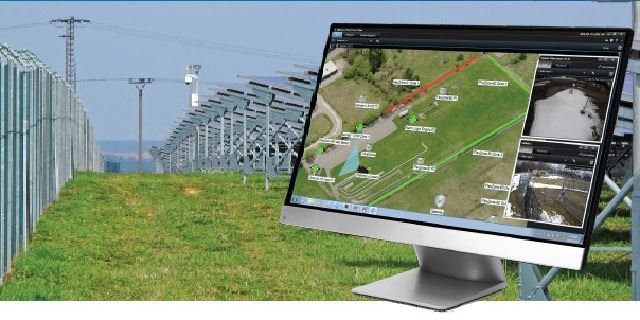

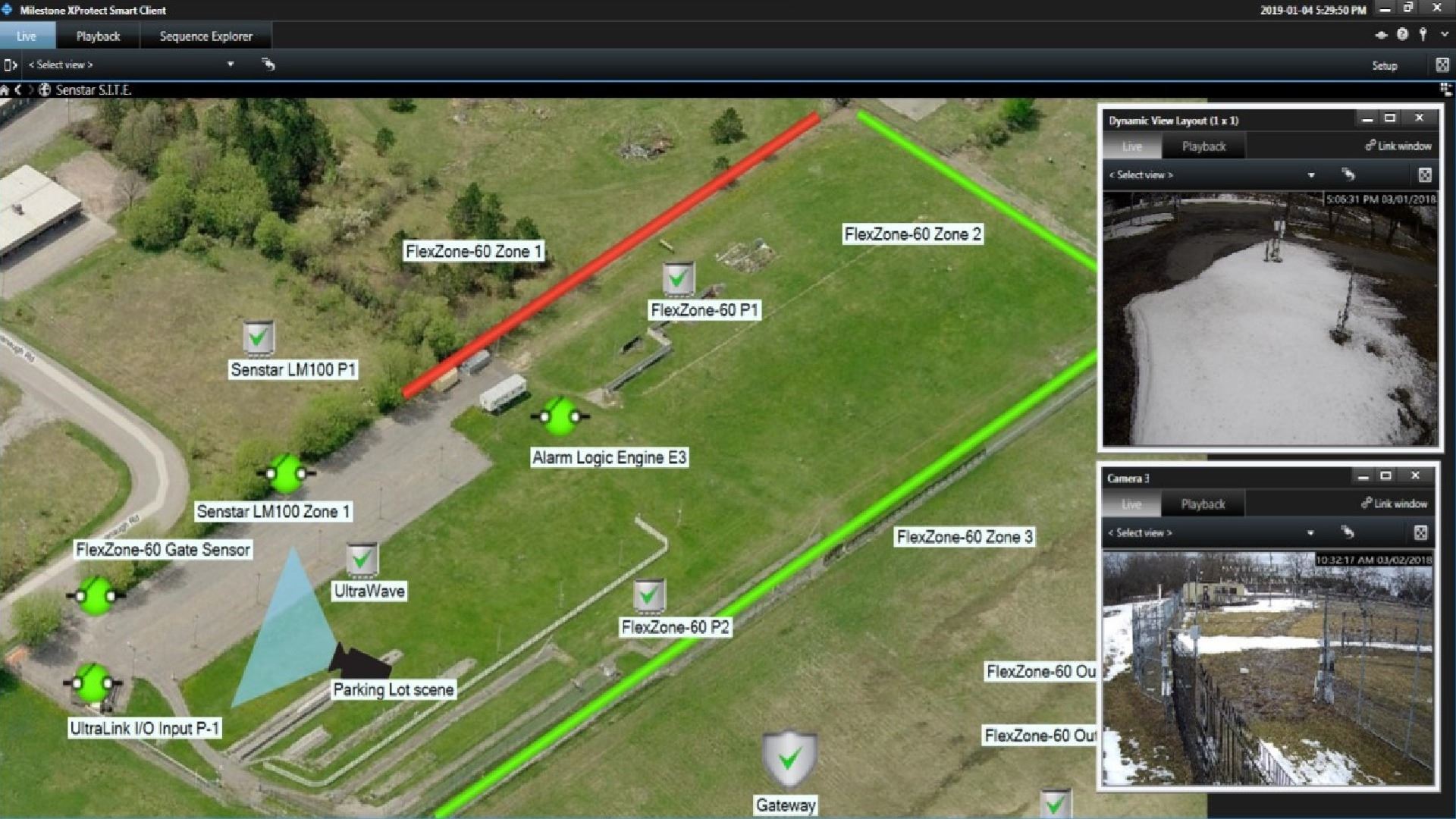

Using Senstar's XProtect integrators user's can view perimeter intrusion detection systems alarms and equipment status in both tabular and map-based views.
2 of 3
Senstar's XProtect integration supports all current Senstar sensors including FlexZone, FiberPatrol, LM100, FP400, OmniTrax, UltraWave, XField, and UltraLink I/O
3 of 3

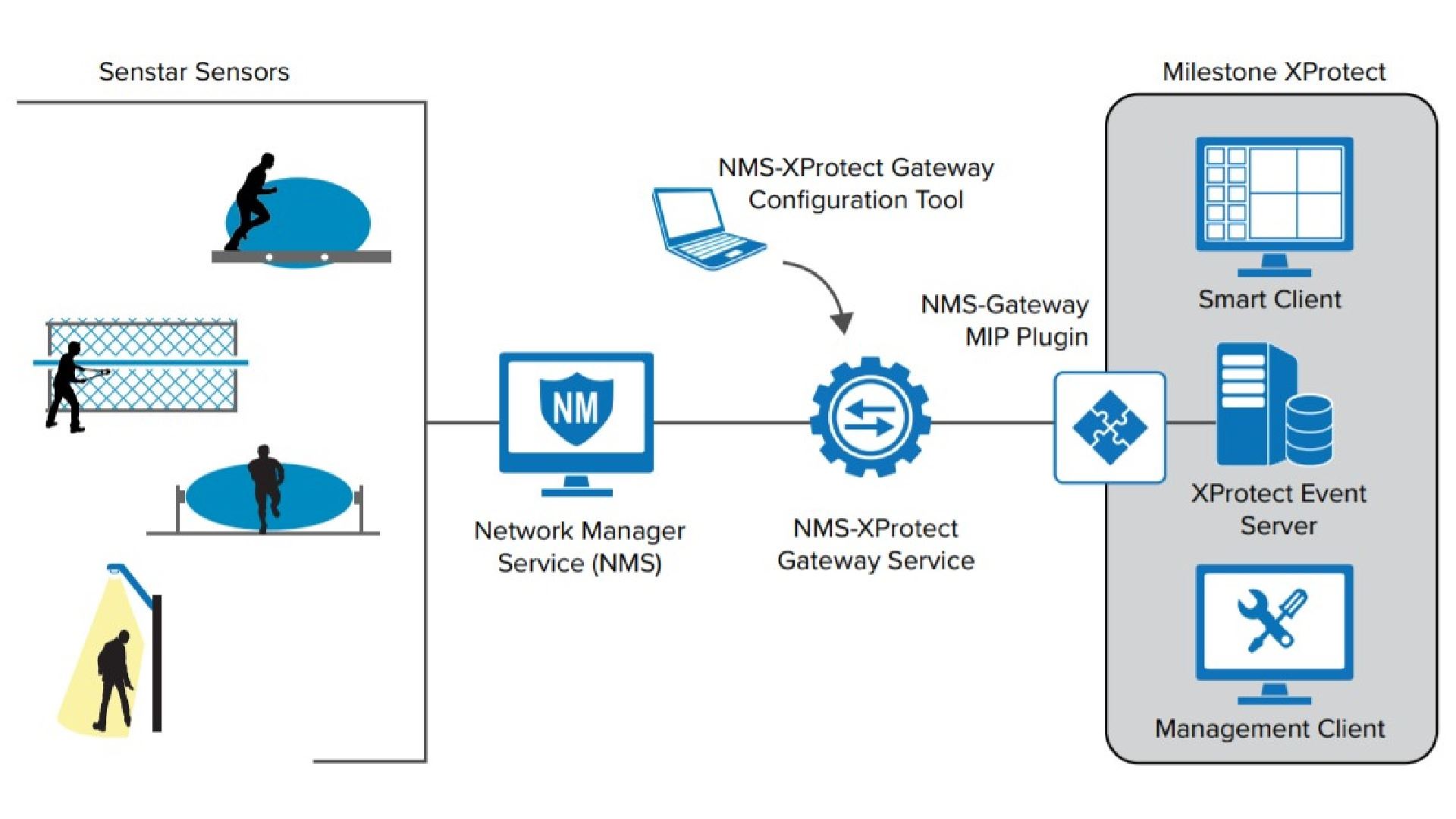

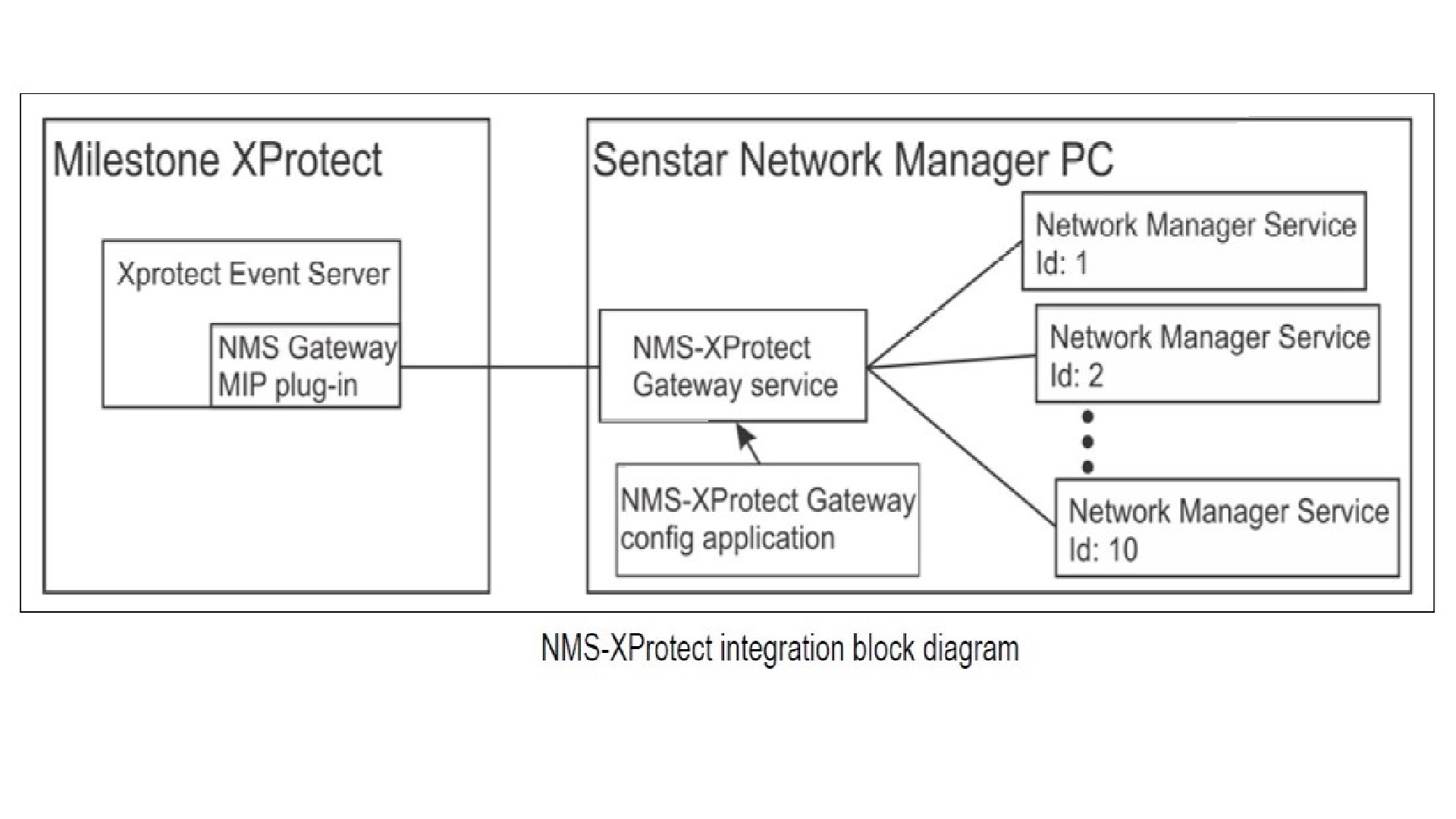

Senstar's XProtect integration includes a MIP plug-in that is installed on the XProtect server and a Gateway service that is installed on the server running the Senstar Network Manager.
How to install
Documentation
This is where you can find additional documentation
| NMS (Network Manager Software) - Milestone XProtect Integration | pdf Download (2.19 MB) |
| Milestone XProtect Network Manager Integration Datasheet | pdf Download (1.73 MB) |
Milestone Verified
Read verification
Specification
Required Senstar Corporation product(s)
Senstar Network Manager Software Part Number 00FG0220, version 2.44 or newer
NMS-XProtect Gateway Part Number 00SW0280, version 2.44 or newer
Has proven compatibility with the following Milestone versions:
-
XProtectExpress2019 R2, 06/19 2019
-
XProtectProfessional2019 R2, 06/19 2019
-
XProtectExpress+2020 R3, 11/12 2020
-
XProtectCorporate2020 R3, 11/12 2020
-
XProtectExpert2020 R3, 11/12 2020
-
XProtectEssential+2020 R3, 11/12 2020
-
XProtectProfessional+2020 R3, 11/12 2020
Is also expected to work with:
-
XProtectExpress2019 R2, 06/19 2019 and later
-
XProtectProfessional2019 R1, 02/05 2019 and later
-
XProtectExpress+2020 R1, 02/11 2020 and later
-
XProtectCorporate2020 R1, 02/11 2020 and later
-
XProtectExpert2020 R1, 02/11 2020 and later
-
XProtectEssential+2020 R1, 02/11 2020 and later
-
XProtectProfessional+2020 R1, 02/11 2020 and later
