Tyco Software House - CCure 9000 - XPA Integration
Enables operators to display CCure access control events and alarms in the XProtect® Smart Client
Updated on Wednesday, March 22, 2023
XProtect Access integration with CCure 9000. View status of access control system, cardholders, controlled doors, readers and other devices in XProtect Smart Client. Control CCure hardware in XProtect. Trigger alarms, pop-ups, video display, recordings and events within XProtect from CCure actions.
What is needed
From Milestone Systems
-
CCure Milestone XProtect Corporate License
Required licenses:
Milestone XProtect Corporate
(view user guide for more details)
Milestone XProtect Corporate
(view user guide for more details)
From Milestone Systems
-
Milestone Access
Licenses required:
XProtect Access Base License
XProtect Access Door License(s)
Software required:
CCure XPA Plugin version 1.2
XProtect Access Base License
XProtect Access Door License(s)
Software required:
CCure XPA Plugin version 1.2
Overview
How it works
How to install
Overview
Tyco Software House - CCure 9000 - XPA Integration - Enables operators to display CCure access control events and alarms in the XProtect® Smart Client
Operators can display CCure 9000 access control system status, cardholders, and real-time events in a separate tab with associated video in the XProtect® Smart Client.Also, they can utilize standard XProtect® video search, export and review functionality.
It is possible to use XProtect® Map functions to display managed door's status on a map image as well as lock and unlock doors and send commands to CCure hardware devices.
By using Milestone XProtect as the viewing client, operators may also manage other third party applications in the same user interface such as intercoms, people counting, heat mapping, loitering and other types of video analytics. These applications are installed separately.
In short, XProtect® VMS & CCure 9000 Access Control Integration allows:
XProtect® Rules engine support for CCure alarms.
XProtect® Smart Client Map support for door controllers.
Viewing alarm events in real time in the XProtect® Smart Client.
Searching for CCure doors and cardholders.
Key features
- View alarms, events, and device status from CCure in real time alongside video and pop-ups from associated cameras inside the XProtect® Smart Client.
- Bi-directional Alarm Acknowledgement - CCure alarms can be acknowledged from the XProtect® Smart Client status of the alarms is shared in real-time.
- Use the Map feature to display managed door status on a map in the Smart Client. Lock and unlock doors or send commands to hardware from the map icon.
- Search for reports on access control hardware, cardholder activity and access control events with all results available with video and images.
- The CCure 9000 XProtect Access integration is compatible with all current versions of both software systems with on-going development and support.
How it works
1 of 6

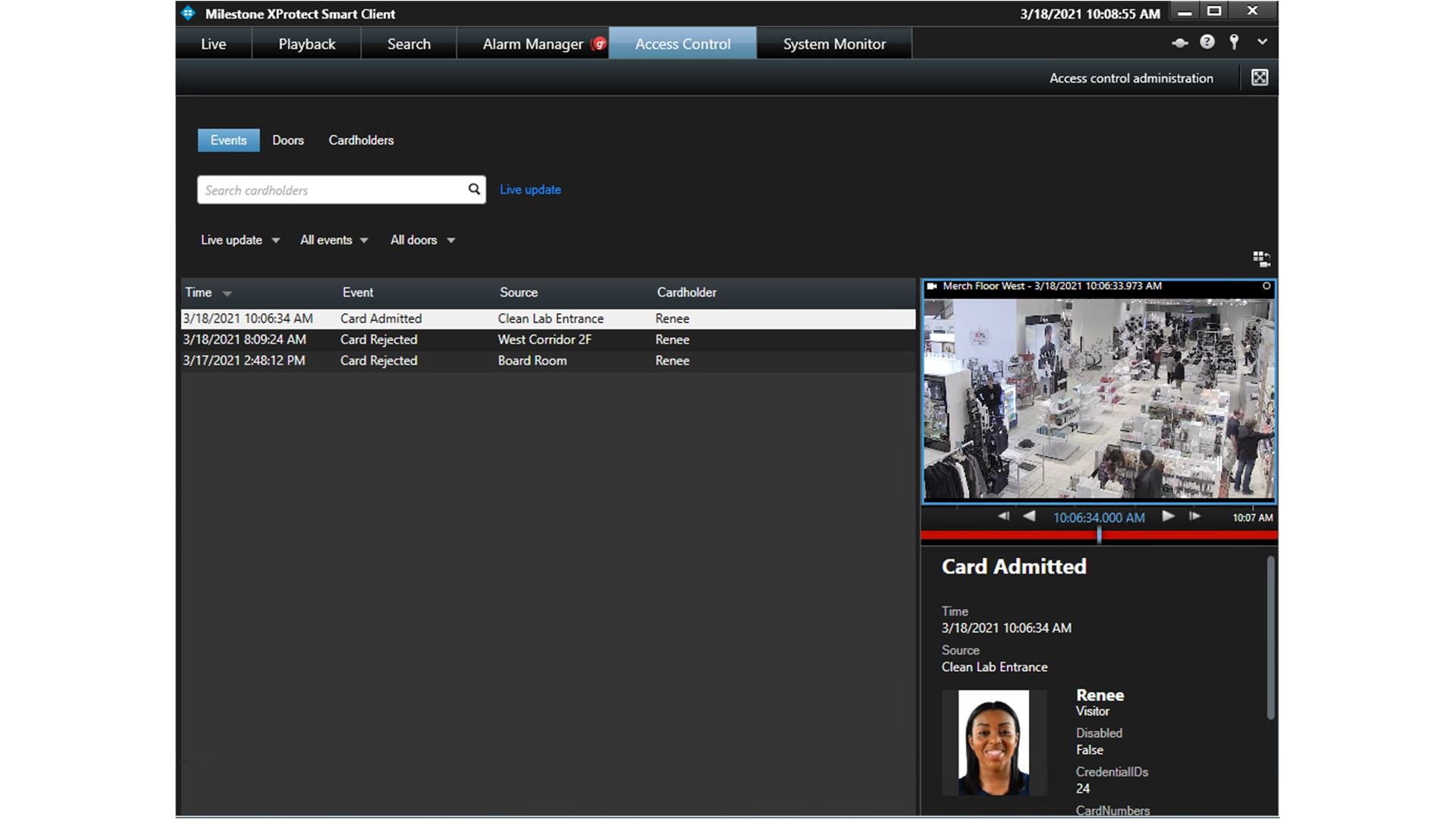

Search for cardholders, events and hardware for real-time status reports and historical activity reports in the XProtect Smart Client.
2 of 6

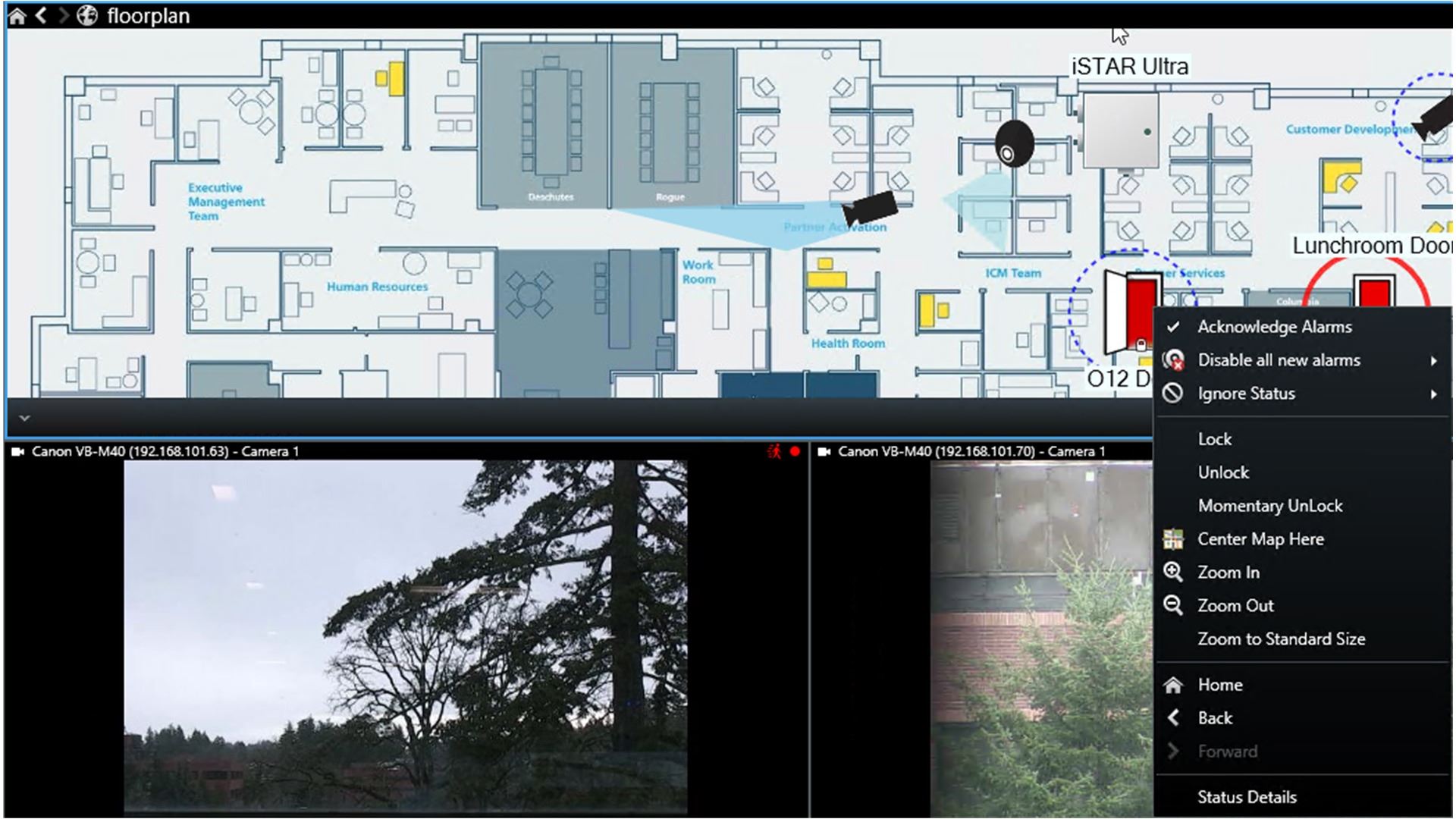

View real-time status of doors, readers, controllers and other CCure hardware on the Map interface of XProtect Smart Client.
3 of 6

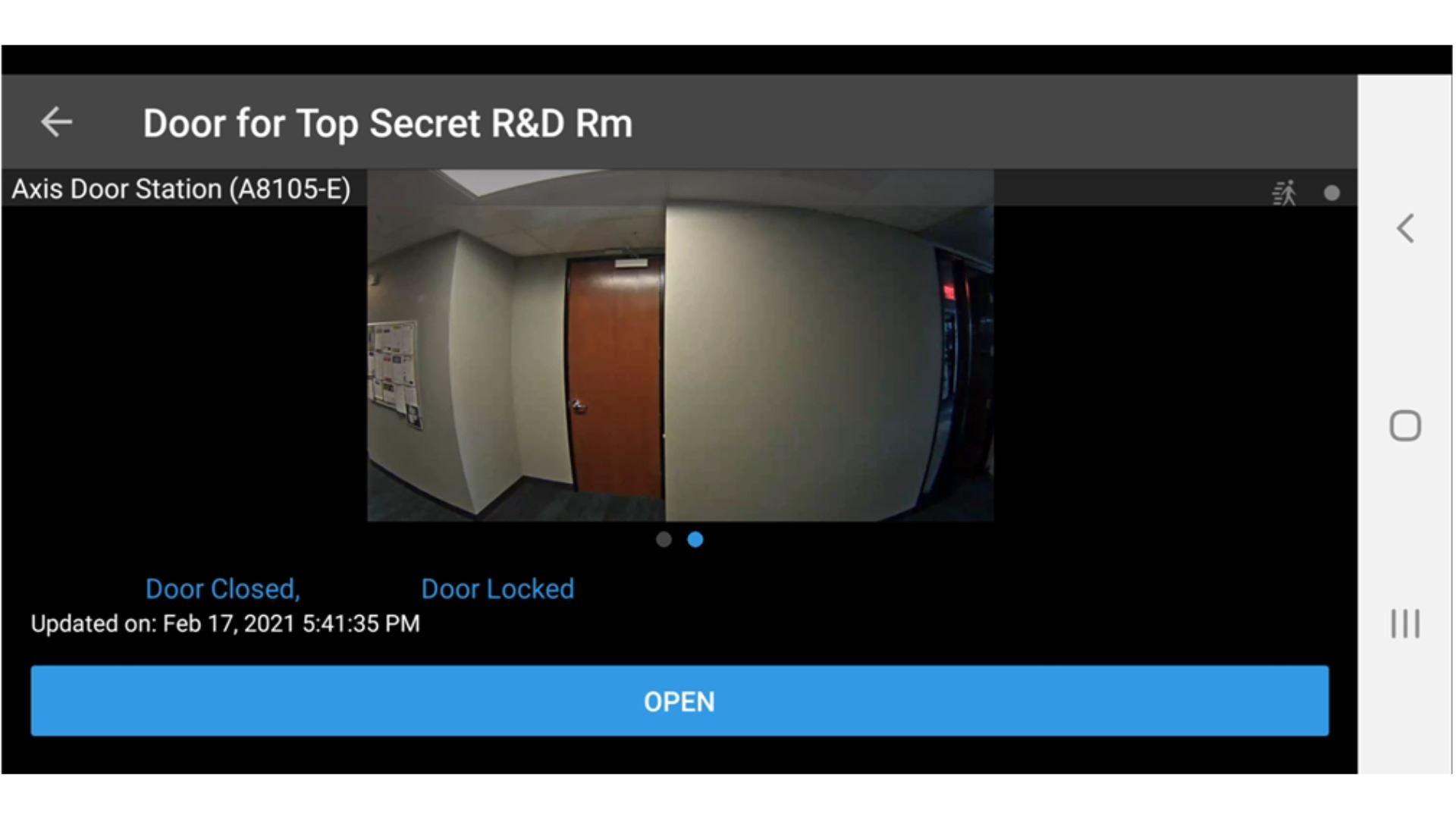

XProtect Access managed doors can be viewed and controlled in Milestone Mobile apps.
4 of 6

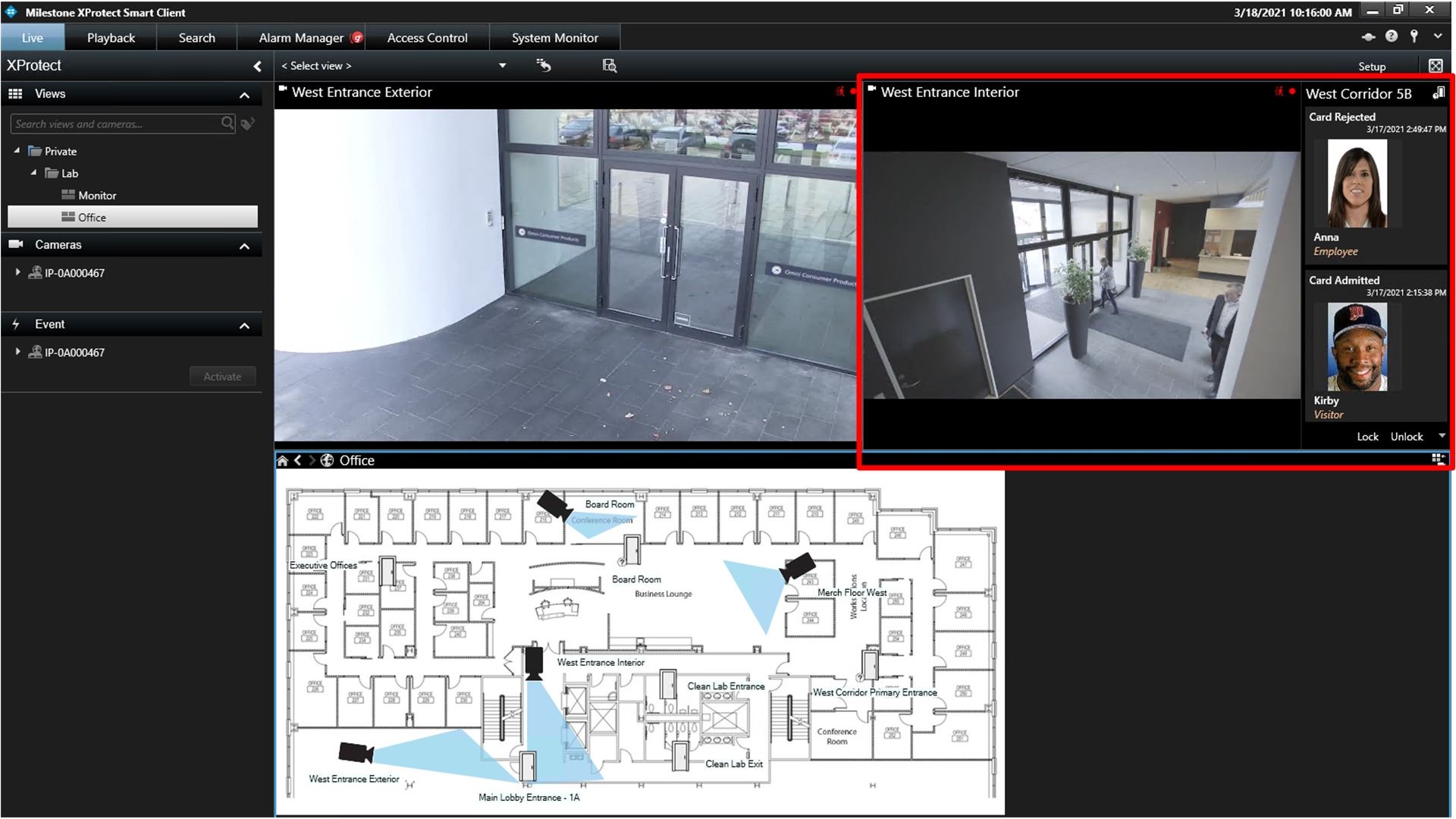

Video from associated cameras is displayed live next to data from access control events from CCure.
5 of 6

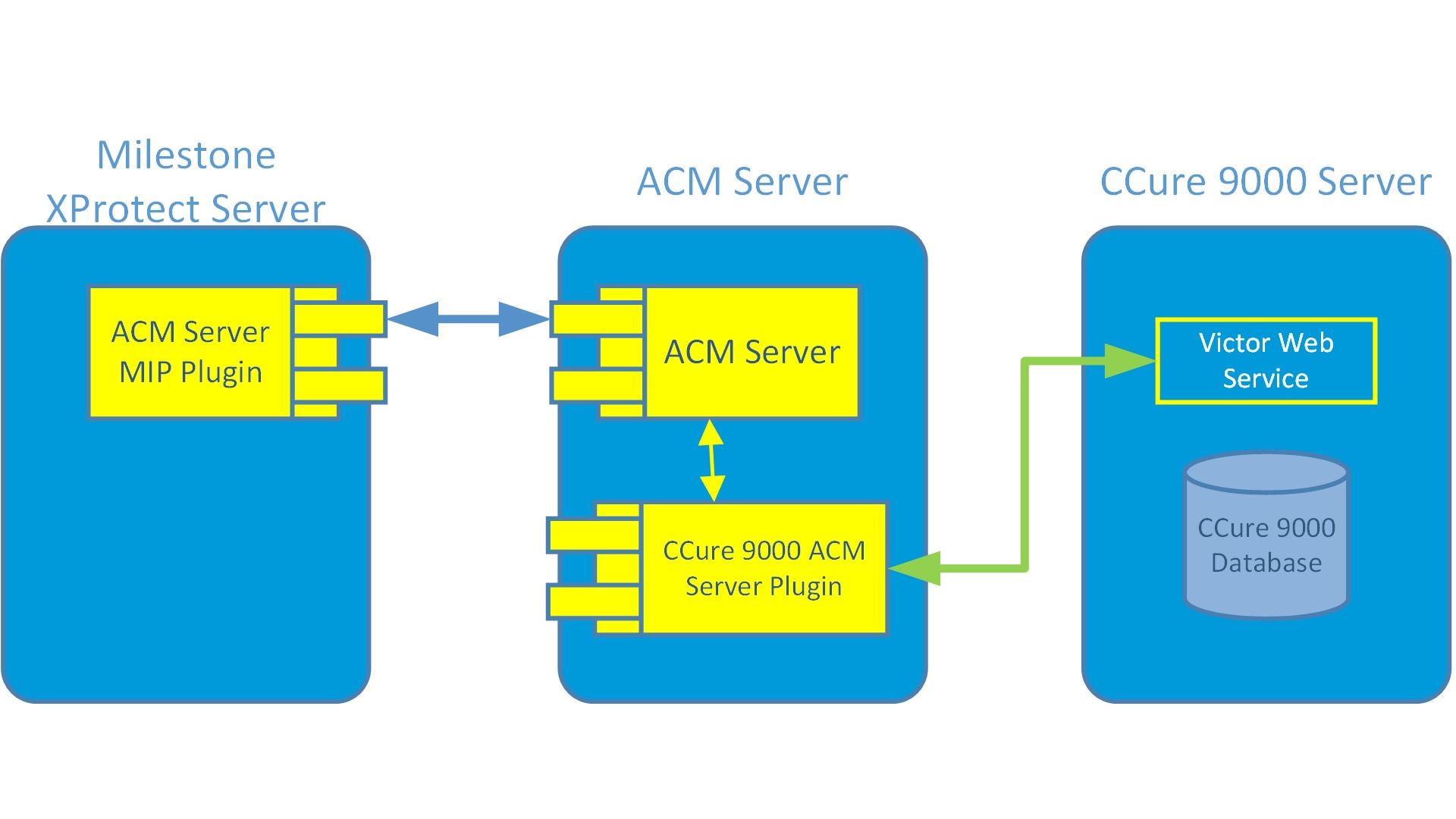

Integration Server architecture fully supported - provides options for situations when you cant install software on existing CCure servers.
6 of 6

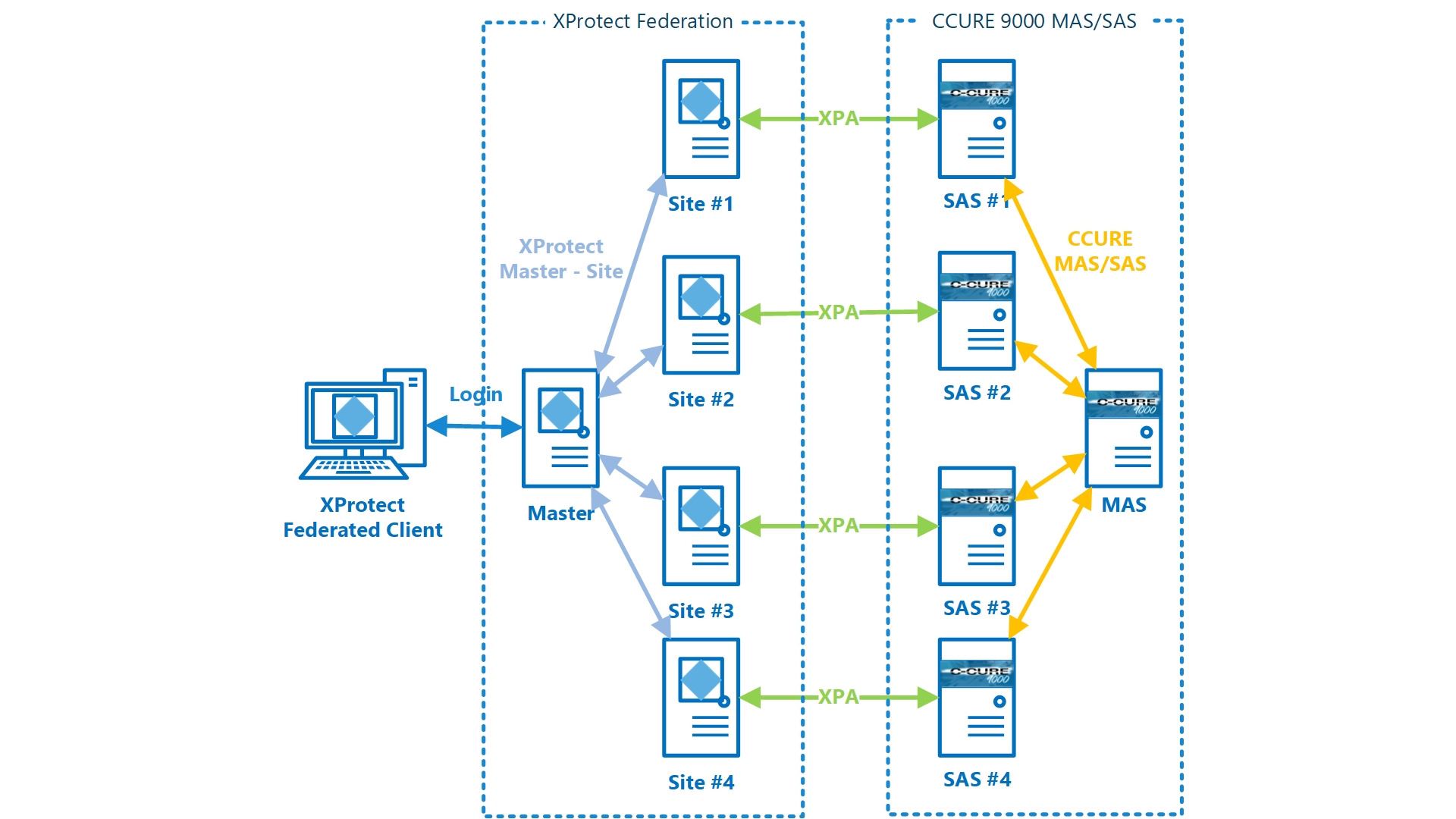

Multi-Server architecture.
How to install
Documentation
This is where you can find additional documentation
| CCure 9000 XPA User Guide | pdf Download (3.36 MB) |
| CCure 9000 XPA Integration Quick Guide | pdf Download (478.22 KB) |
| CCure 9000 XPA Event List | pdf Download (37.86 KB) |
Milestone Verified
Read verification
Installers
Here you can find more information about installers and installation guides
| Title | Installer Guide | Installer Software |
|---|---|---|
| N/A Download |
Specification
Required Milestone Systems product(s)
CCure 9000 2.70 - 2.80 - 2.90
XProtect Access CCure 9000 Integration - v 1.2
XProtect VMS 2018, 2019, 2020 R1-3
Has proven compatibility with the following Milestone versions:
-
XProtectCorporate2020 R3, 11/12 2020
-
XProtectExpert2020 R3, 11/12 2020
-
XProtectProfessional+2020 R3, 11/12 2020
Is also expected to work with:
-
XProtectCorporate2018 R1, 02/20 2018 and later
-
XProtectExpert2018 R1, 02/20 2018 and later
-
XProtectProfessional+2018 R1, 02/20 2018 and later
