Clarius IP - White Light and IR LED Illuminators
PoE+/IP enabled White Light & Infra-Red illuminators to enhance video surveillance deployments.
Updated on Thursday, January 14, 2021
Smart, integrated lighting brings full color images & enhanced viewing for your surveillance projects. White light increases the level of detail a camera can see, but also may be used as an active deterrent. Infra-Red enhances nighttime performance of CCTV systems & analytics.
What is needed
From GJD Manufacturing Ltd
-
White Light IP
-
IR 850nm IP
-
IR 940nm IP
Available products for XProtect Integration:
White Light IP - White Light LED illuminator
IR 850nm IP - Infra-Red 850nm LED illuminator
IR940nm IP - Infra-Red 940nm LED illuminator
White Light IP - White Light LED illuminator
IR 850nm IP - Infra-Red 850nm LED illuminator
IR940nm IP - Infra-Red 940nm LED illuminator
From Milestone Systems
-
Milestone XProtect
XProtect® Corporate
XProtect® Expert
XProtect® Professional+
XProtect® Express+
XProtect® Essential+
2020R1 or higher
XProtect® Expert
XProtect® Professional+
XProtect® Express+
XProtect® Essential+
2020R1 or higher
Overview
How it works
How to install
Overview
Clarius IP - White Light and IR LED Illuminators - PoE+/IP enabled White Light & Infra-Red illuminators to enhance video surveillance deployments.

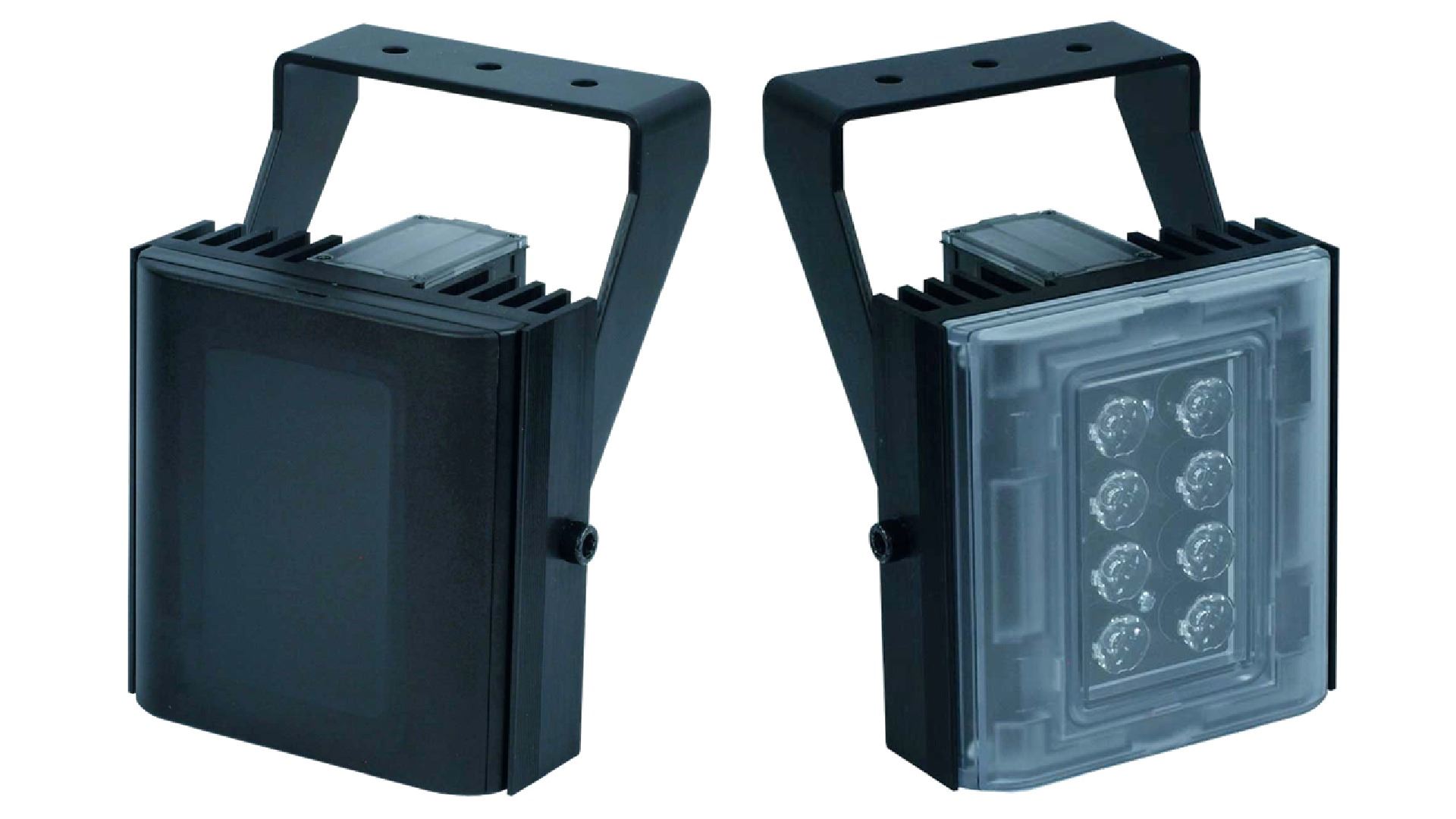

The Clarius® Plus IP is a high performance range of Infra-Red & White Light LED illuminators. Incorporating the latest surface mount LED’s with enhanced optical output and outstanding reliability, they deliver excellent night-time images. These illuminators have integrated web browser interface and include a new interchangeable lens diffuser system; which allows the user to quickly and easily alter the angle of illumination. Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimizing light wastage. The system also helps to prevent overexposure of foreground objects. As standard the illuminator includes interchangeable lensing to deliver 10° circular, 30º, 60º & 95º elliptical beam profiles. All lights include an adjustable photocell and configurable power outputs.Key features
- PoE+ & IP enabled for easy setup and install
- Diffuser pack to change FOV of light
- Anodized Extrusion for heat dissipation
- Top mounted Photocell
- Low power consumption
How to install
Documentation
This is where you can find additional documentation
| Milestone - Clarius IP Driver Setup | pdf Download (269.27 KB) |
| Milestone - Integration Examples & Walkthrough | pdf Download (2.82 MB) |
| Clarius IP Infra-Red - Spec Sheet | pdf Download (583.00 KB) |
| Clarius IP White Light - Spec Sheet | pdf Download (601.67 KB) |
Milestone Verified
Read verification
Installers
Here you can find more information about installers and installation guides
| Title | Installer Guide | Installer Software |
|---|---|---|
| zip Download (309.30 KB) | ||
| N/A Download |
Specification
Required GJD Manufacturing Ltd product(s)
IM-8-IP - PoE+/IP 850nm Infra-Red LED Illuminator
IM-9-IP - PoE+/IP 940nm Infra-Red LED Illuminator
VM-CW-IP - PoE+/IP White Light LED Illuminator
Has proven compatibility with the following Milestone versions:
-
XProtectExpress+2020 R2, 06/09 2020
-
XProtectCorporate2020 R2, 06/09 2020
-
XProtectExpert2020 R2, 06/09 2020
-
XProtectEssential+2020 R2, 06/09 2020
-
XProtectProfessional+2020 R2, 06/09 2020
Is also expected to work with:
-
XProtectExpress+2020 R1, 02/11 2020 and later
-
XProtectCorporate2019 R2, 06/19 2019 and later
-
XProtectExpert2019 R2, 06/19 2019 and later
-
XProtectEssential+2020 R1, 02/11 2020 and later
-
XProtectProfessional+2019 R2, 06/19 2019 and later
