2N IP Access Control Integration to XProtect®
Use a single intuitive interface for the video and access monitoring and control!
From 2N Telekomunikace
2N® Access Commander
2N® Access Commander Plugin for XProtect
2N® Access Commander Plugin for XProtect (version 1.5)
From Milestone Systems
License for Milestone XProtect including access control door
2N IP Access Control Integration to XProtect® - Use a single intuitive interface for the video and access monitoring and control!2N offers an IP-based access solution consisting of 2N® Access Commander, edge multi-technology readers, and intercoms. The combination of video and access control improves situational awareness and the overall security of a building.
HOW CAN YOU BENEFIT FROM THE INTEGRATION?
2N has developed a plugin enabling the integration of the 2N® Access Commander control system with the XProtect® Access system. The plugin sends access events, door states, and cardholder information (e.g. card ID, PIN, License plates, mobile credential) directly to the Milestone XProtect Access. The XProtect® users can control and monitor doors directly from graphical maps in XProtect®. If an alarm occurs (door open too long, door forced open, tamper alarm), the operator is instantly notified by icon signaling. He can check the camera stream near the location and take appropriate action. The access events are linked to video recordings which makes retrieving relevant footage from the past quick and easy.

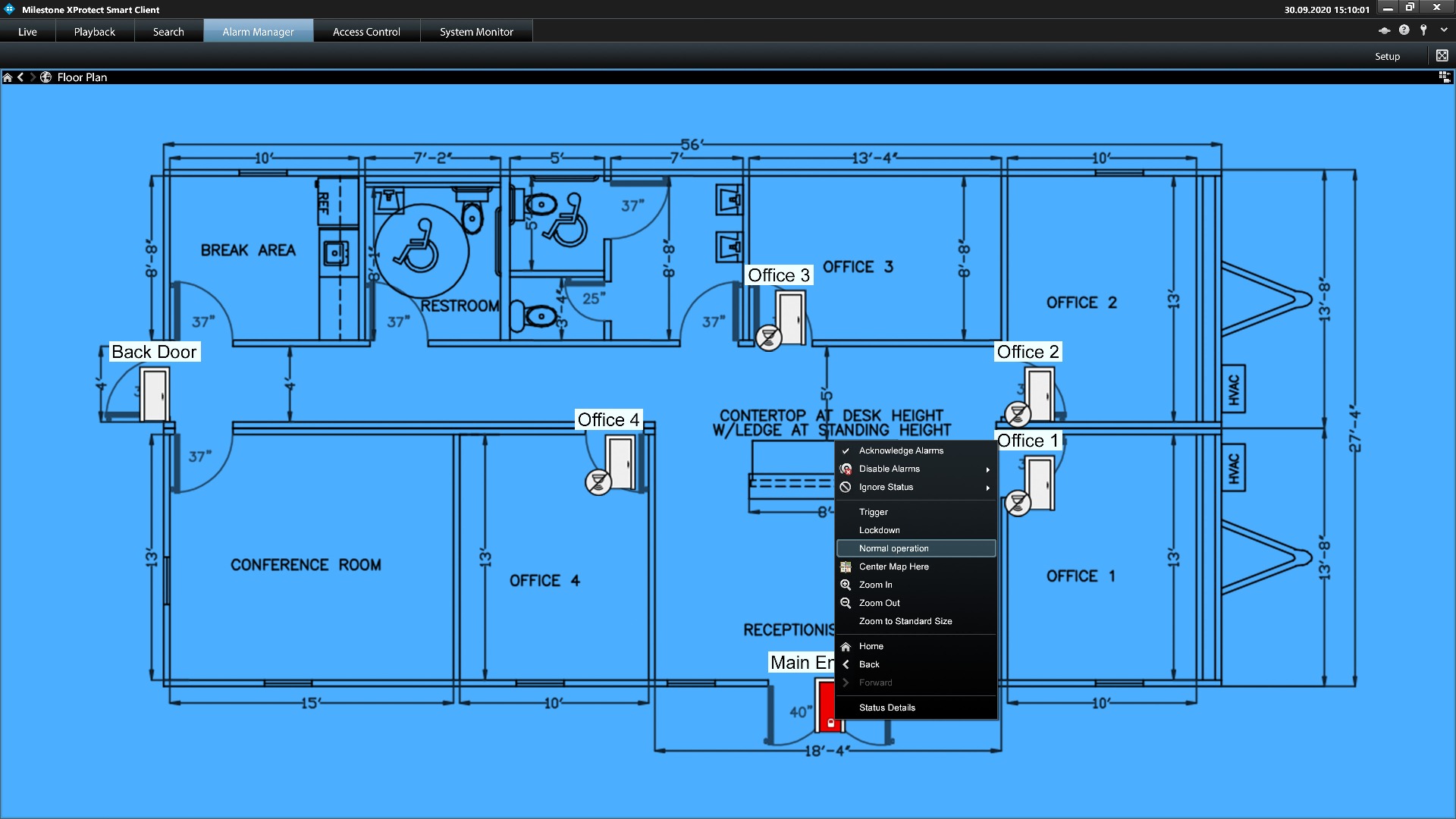

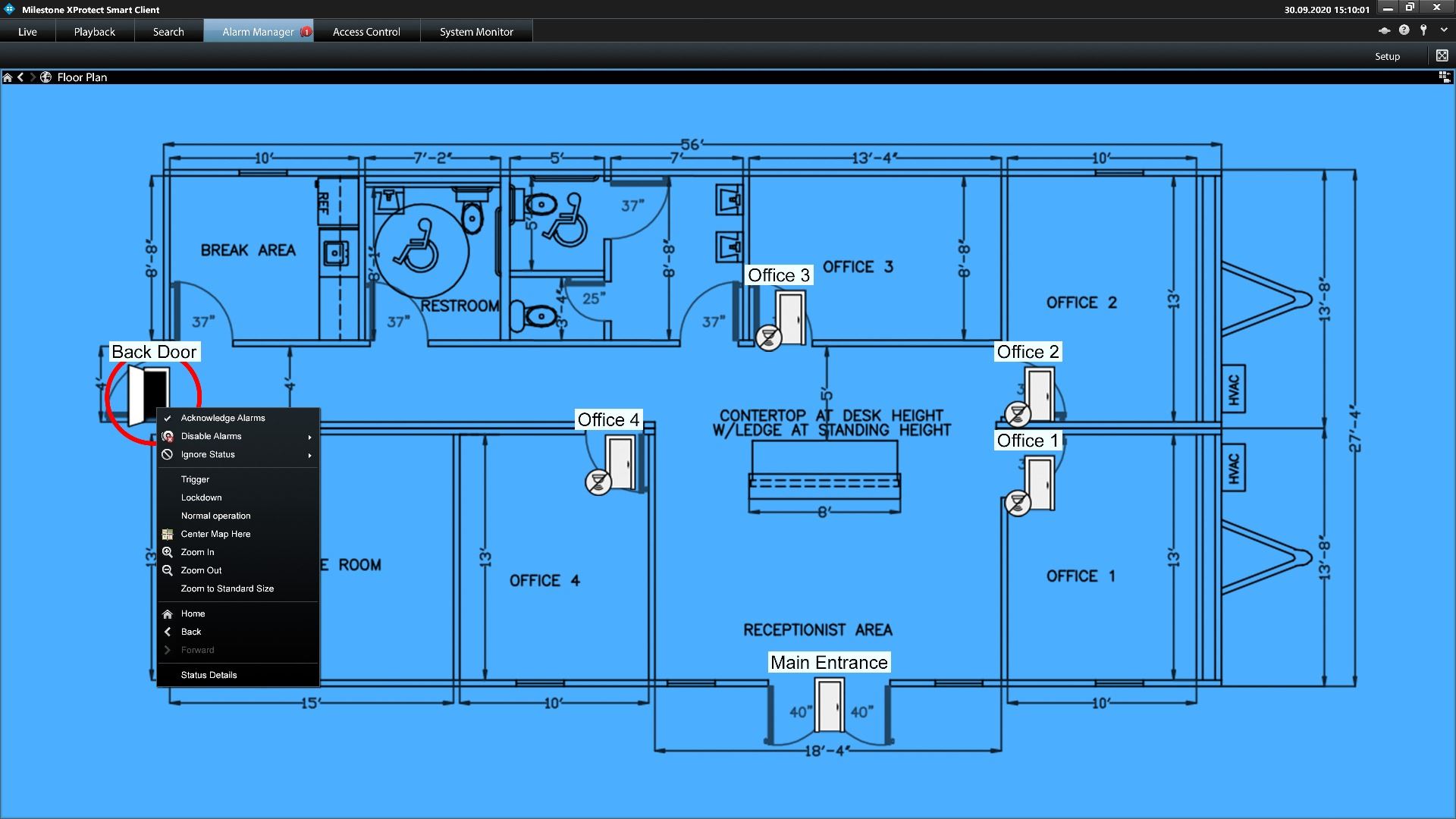

- Door control - You can control door switches and command different actions like unlock, lockdown or door hold open.

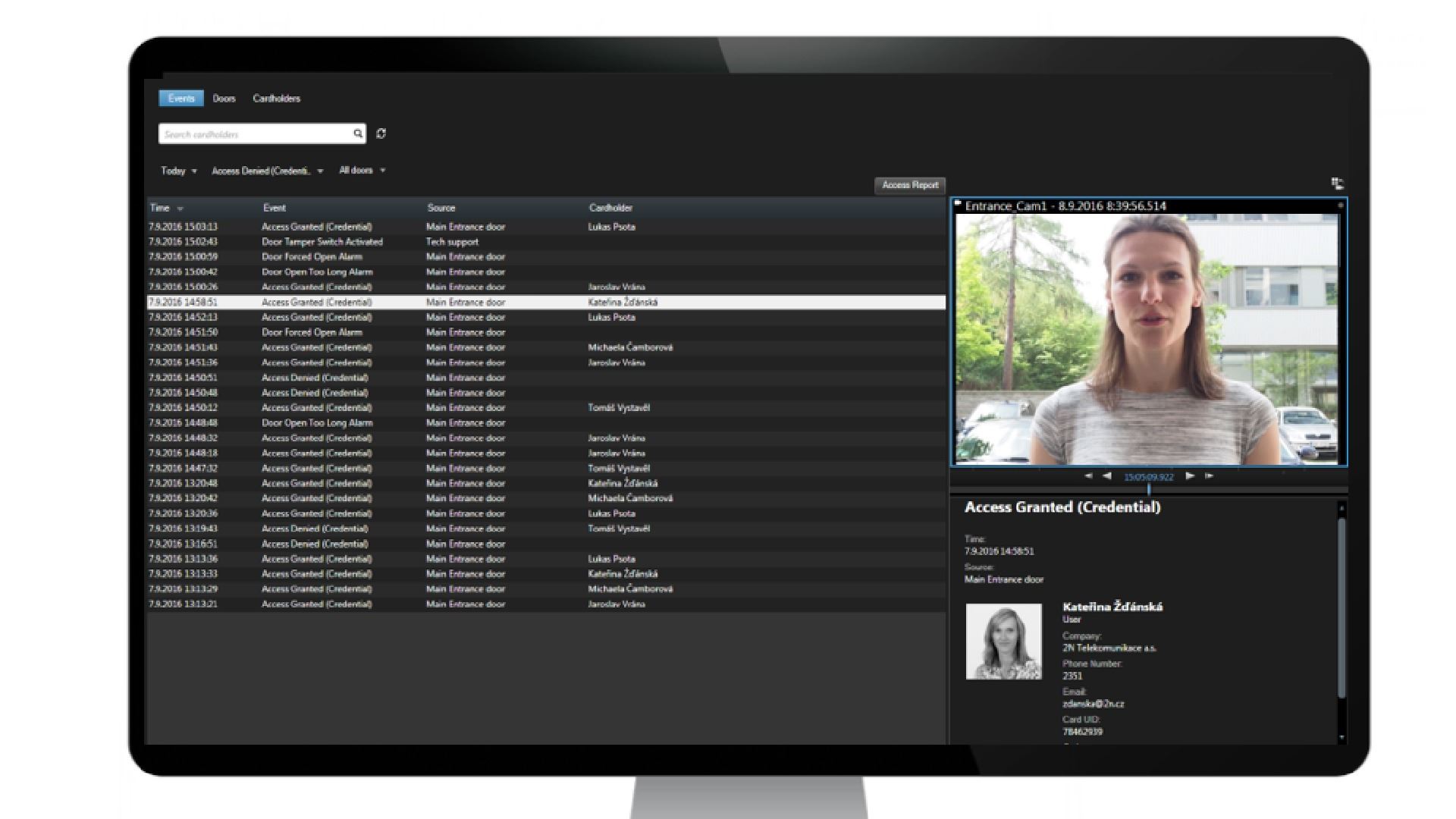

- Real time event logging - see all access logs like users details, photos and card IDs from 2N® Access Commander directly in Milestone.
- Mulitple access credentials supported - mobile credentials, RFID, PIN, finger print and license plate.

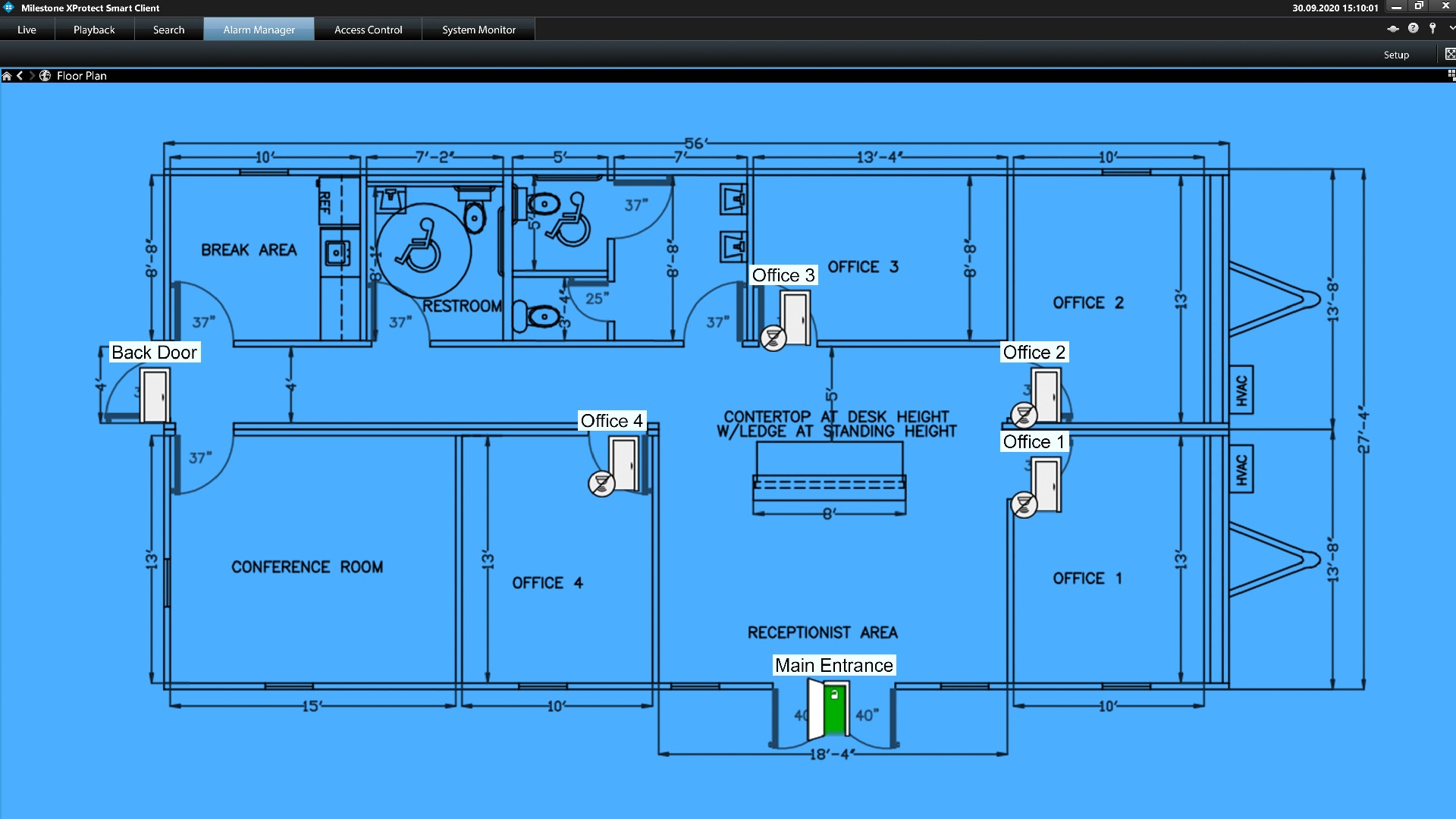

- Integration with maps – enjoy a visual representation of 2N controlled doors. You may see door state changes represented by a change in icon.

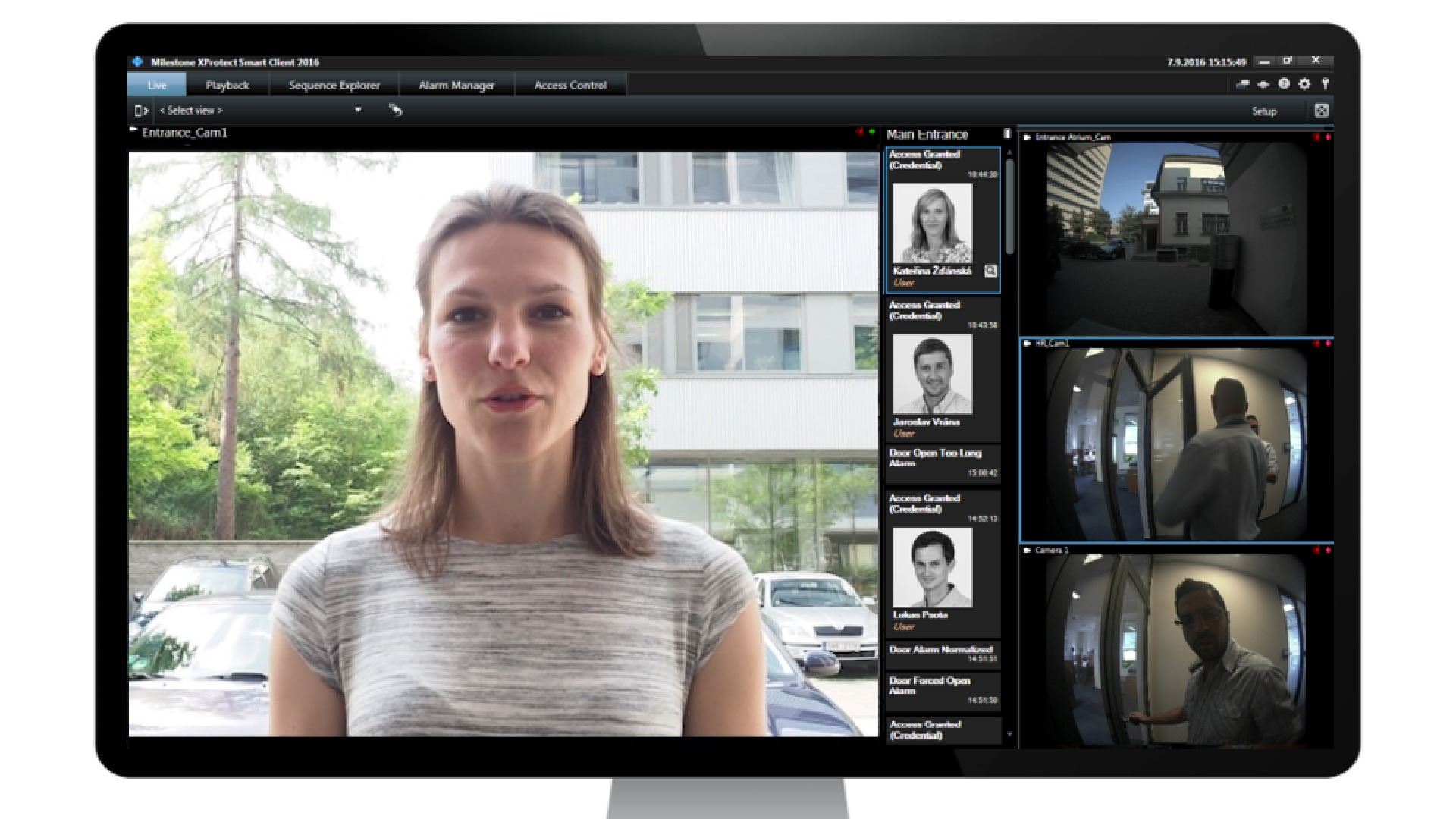

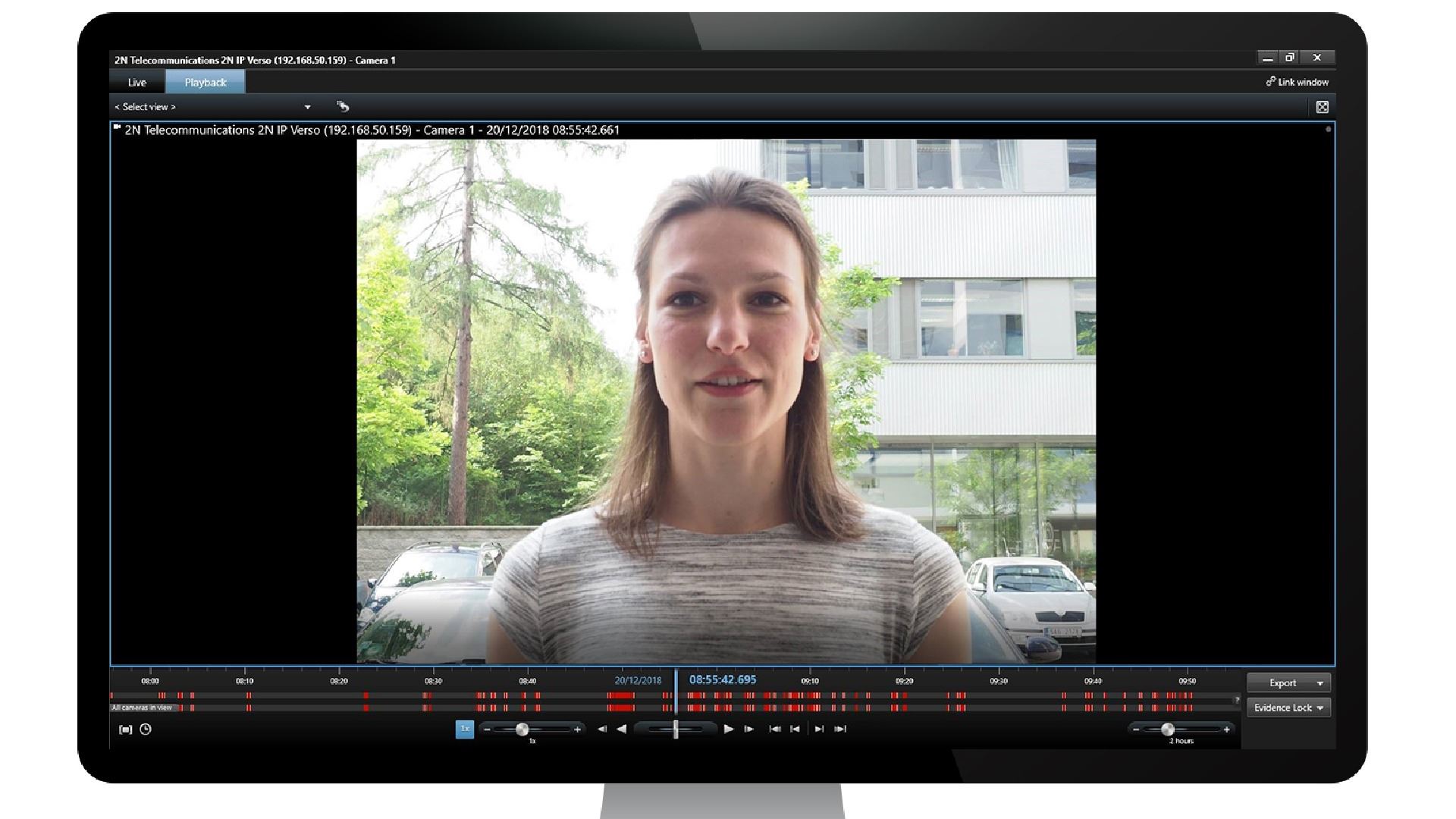

- Link events from the access control system with video footage or other actions in Xprotect .
IndustriesArts & Entertainment Education Finance & Insurance Healthcare Public Administration Retail
TechnologiesAccess Control Systems Building Systems Device Management Intercom Systems Management Software Mobile identity / credentials Visitor Management
Area of practiceAccess Control Communications Door hardware Intercoms Multi site Phone systems Up to 500 readers in one system Vehicle access
ChallengesControl access to restricted areas Prevent vandalism Provide situational awareness to response teams
How to install
This is where you can find additional documentation
|Integration Manual: 2N Access Commander Plugin||pdf Download (171.77 KB)|
|2N & Milestone Integration features overview||pdf Download (862.10 KB)|
|Verification Report||pdf Download (109.16 KB)|
Here you can find more information about installers and installation guides
Has proven compatibility with the following Milestone versions:
XProtectProfessional2019 R2, 06/19 2019
XProtectExpress+2020 R3, 11/12 2020
XProtectCorporate2020 R3, 11/12 2020
XProtectExpert2020 R3, 11/12 2020
XProtectEssential+2020 R3, 11/12 2020
XProtectProfessional+2020 R3, 11/12 2020
Is also expected to work with:
XProtectProfessional2019 R1, 02/05 2019 and later
XProtectExpress+2020 R1, 02/11 2020 and later
XProtectCorporate2020 R1, 02/11 2020 and later
XProtectExpert2020 R1, 02/11 2020 and later
XProtectEssential+2020 R1, 02/11 2020 and later
XProtectProfessional+2020 R1, 02/11 2020 and later
